Home
>>
Chevrolet
>>
1998
>>
Camaro V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>
Connector Views
>>
C2 (Clear)
>>
Pin Information
>>
Pins 15-60
Pins 15-60

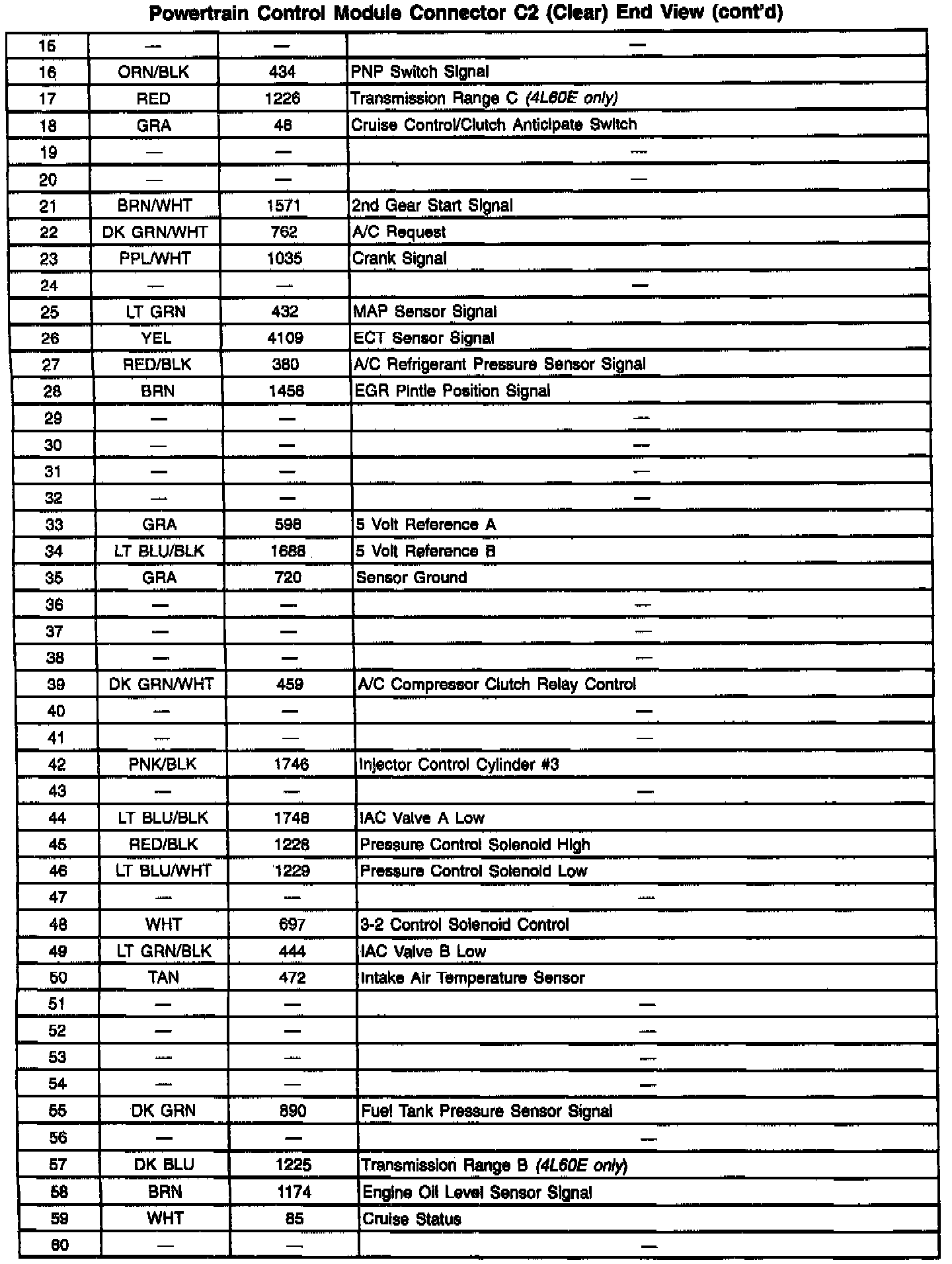

C2 (CLEAR) 15-60:
