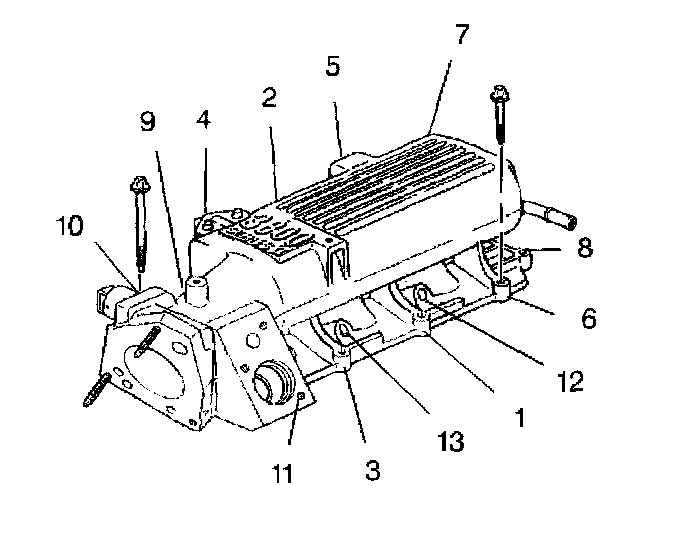

Upper Intake Manifold Torque and Sequence

^Tighten the vertical bolts in sequence to 15 Nm (11 ft. lbs.).

^Tighten the two water outlet bolts in sequence to 27 Nm (20 ft. lbs.).

^Tighten the side bolts in sequence to 30 Nm (22 ft. lbs.).






^Tighten the throttle body nuts and bolt to 10 Nm (89 inch lbs.).
