Steering Gear

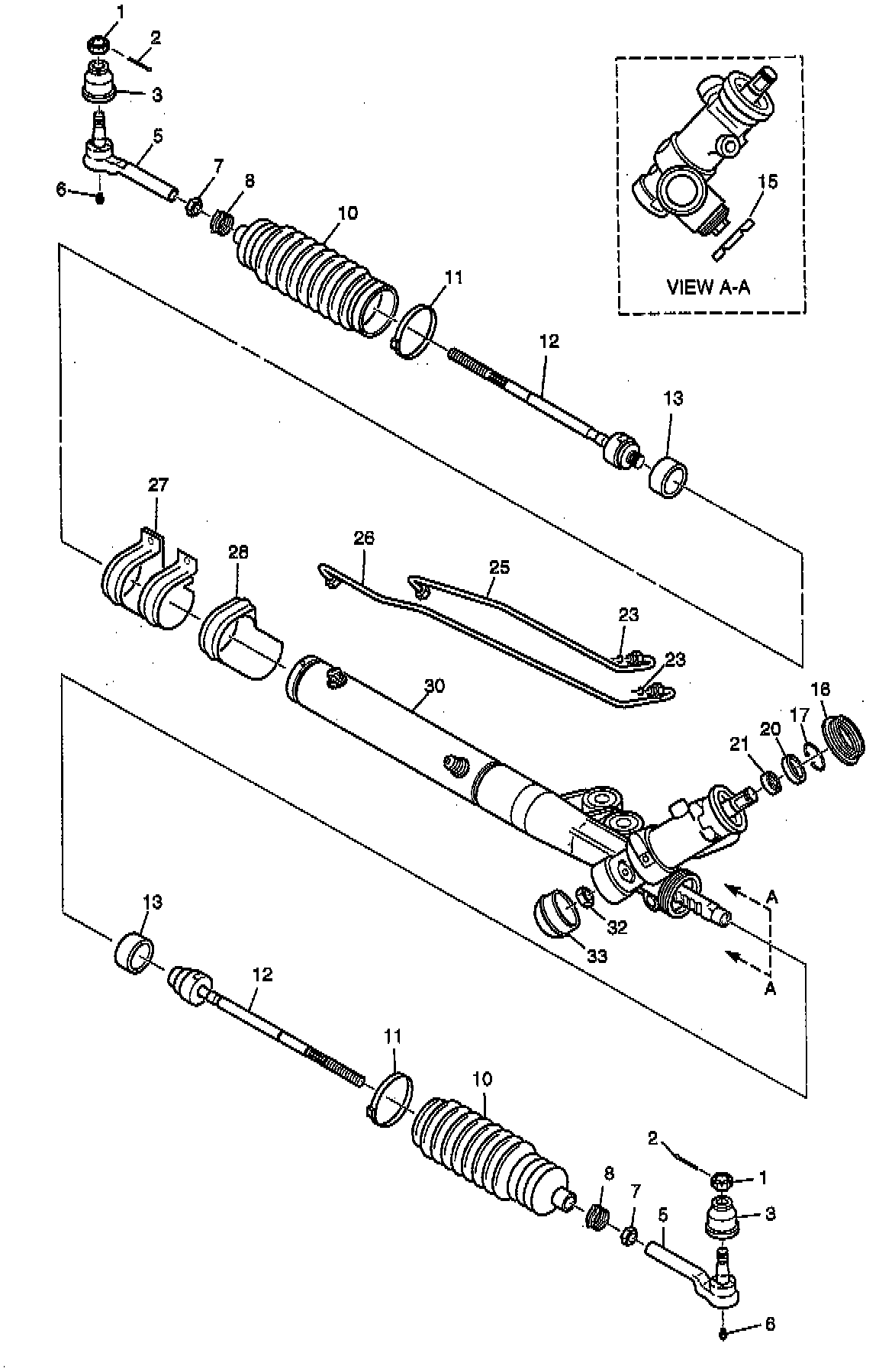

Power Rack And Pinion - End Take Off - Part 1 Of 2:

Cylinder End Fittings 27.0 Nm (20 ft. lbs.)
Hexagon Slotted Nut (1) 47.0 Nm (35 ft. lbs.)
Hexagon Jam Nut (7) 68.0 Nm (50 ft. lbs.)
Hex Lock Nut (32) 30.0 Nm (22 ft. lbs.)
Inner Tie Rod (12) 100.0 Nm (74 ft. lbs.)
Lock Nut (15) 68.0 Nm (50 ft. lbs.)
Power Steering Gear Bolt/Screw 85 Nm (63 ft. lbs.)
Pinion Preload 1.8 Nm (16 inch lbs.)
Valve End Fittings 16.9 Nm (12.6 ft. lbs.)
