Positive: Service and Repair

REMOVAL PROCEDURE




1. Remove the battery.
2. Remove the positive battery cable from the stud on the fuseblock:
^ Open the positive cable cap.
^ Remove the positive cable nut.
^ Remove the positive lead from the stud.




3. Remove the positive cable from the generator:
^ Slide the boot down revealing the positive terminal stud.
^ Remove the positive cable nut at the generator.
^ Remove the positive cable.

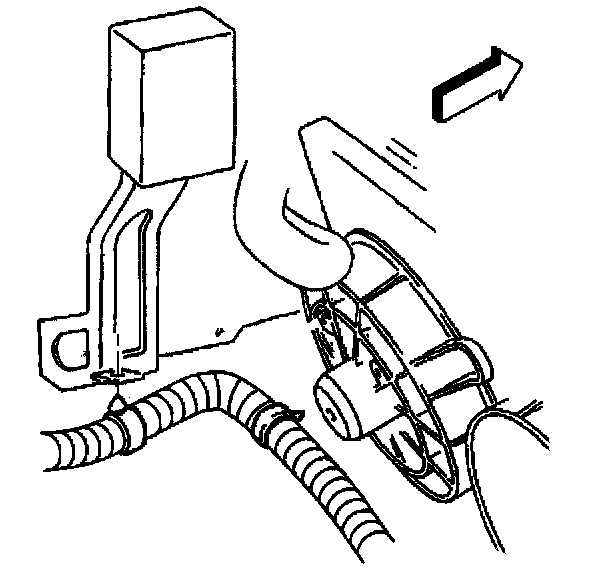

4. Remove the positive cable rosebud clip from the engine lift bracket.

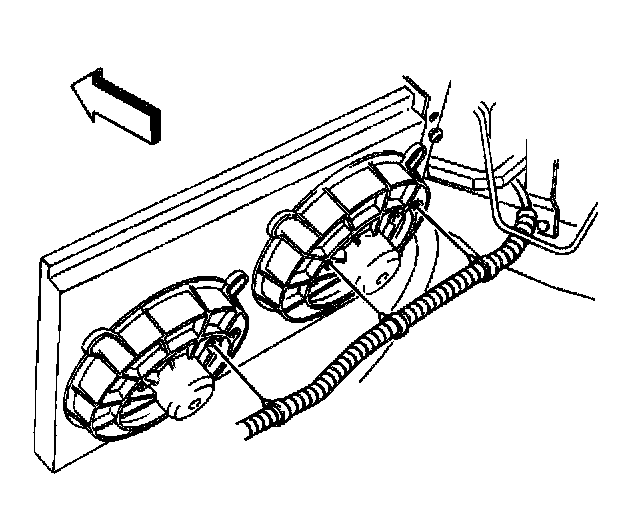

5. Remove the positive cable rosebud clips from the cooling fans.
6. Raise and suitably support the vehicle.




7. Remove the positive cable from the rosebud clip at the power steering reservoir.
8. Remove the bolt and ground strap at the driver side front rail.




9. Remove the positive/negative cable from the engine mount stud:
^ Remove the battery positive cable nut (2).
^ Remove the harness clamp from the stud.
^ Remove the RF (Radio Frequency) ground strap.

10. Remove the starter shield.
11. Remove the positive cable from the starter solenoid:
^ Remove the cable to starter nut (1).
^ Remove the positive cable from the conduit.

INSTALLATION PROCEDURE




1. Install the positive cable to the conduit.
2. Install the cable to starter nut (1).

NOTE: Refer to Fastener Notice in Cautions and Notices.

Tighten
Tighten the positive cable to starter nut (1) to 10 N.m (89 lb in).

3. Install the starter shield.
4. Install the positive/negative cable to the engine mount stud:
^ Install the RF (Radio Frequency) ground strap.
^ Install the harness clamp to the stud.
^ Install the battery positive cable nut (2).

Tighten
Tighten the positive cable to block stud nut (2) to 25 N.m (18 lb ft).




5. Install the bolt and ground strap at the driver side front rail.

Tighten
Tighten the ground strap bolt to 12 N.m (106 lb in).

6. Connect the positive cable to the rosebud clip at the power steering reservoir.
7. Lower the vehicle.




8. Install the positive cable rosebud clips to the cooling fans.




9. Install the positive cable to the generator.
^ Install the positive cable to the stud.
^ Install the positive cable nut to the generator.

Tighten
Tighten the positive cable to generator nut to 22 N.m (16 lb ft).

^ Slide the boot over the positive terminal stud.




10. Install the positive battery cable to the stud on the fuseblock:
^ Install the positive lead to the stud.
^ Install the positive battery cable nut.

Tighten
Tighten the positive cable to fuseblock nut to 14 N.m (10 lb ft).

^ Close the positive cable cap.

11. Install the battery.
