Clutch Coil

Tools Required
J 41790 Compressor Holding Fixture
J 8433 Compressor Pulley Puller
J 8433-3 Forcing Screw
J 33025 Clutch Coil Puller Legs
J 33023-A Puller Pilot

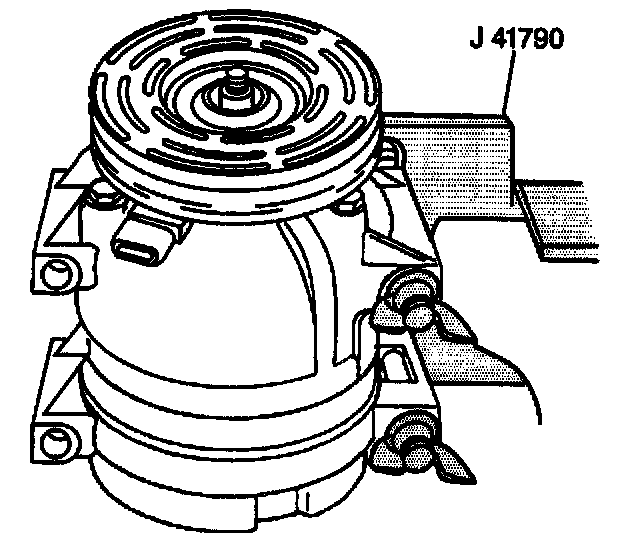

Figure 13 - Installing Compressor Onto Holding Fixture:

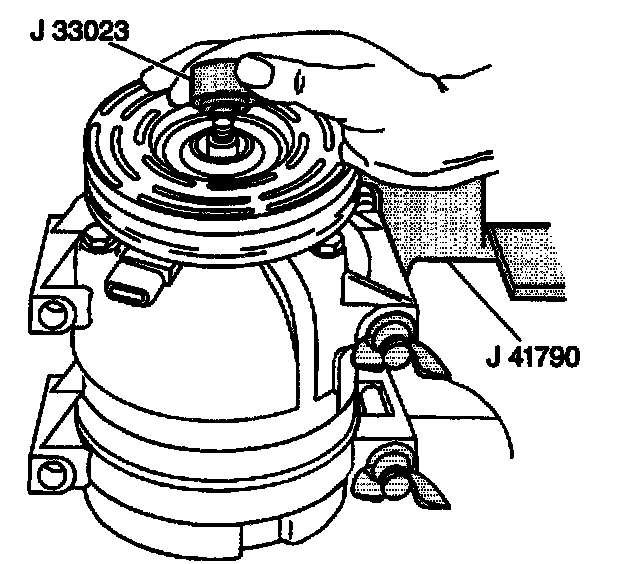

Figure 14 - Installing Pulley Rotor And Bearing Puller Guide:

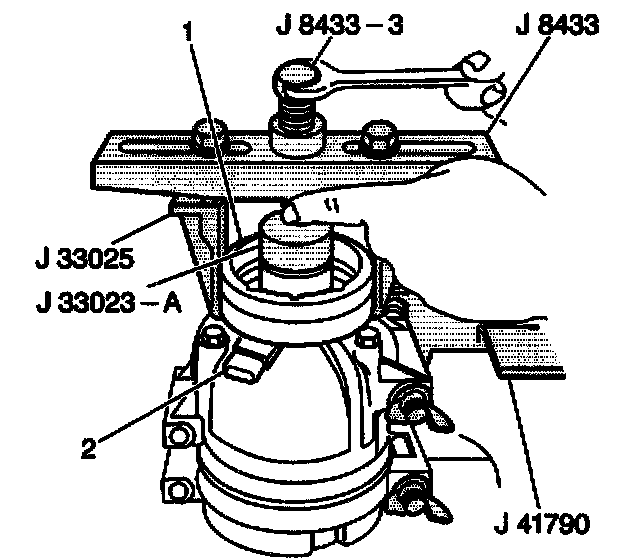

Figure 15 - Clutch Coil Assembly Removal:

Remove or Disconnect

1. Remove the compressor from the vehicle.
2. Install the compressor onto the J 41790 (Figure 13).
3. Remove the compressor clutch plate and hub assembly.
4. Remove the compressor clutch plate and hub assembly.
5. Install the J 33023-A onto the front head of the compressor (Figure 14).
6. Mark the clutch coil terminal location (2) on the compressor front head.
7. Install the J 33025 onto the J 8433.
8. Install the J 8433 onto the compressor clutch coil (1) and tighten the puller leg bolts.
9. Tighten the center forcing screw J 8433-3 against the puller pilot to remove the compressor clutch coil from the compressor (Figure 15).

Tools Required
J 33024 Clutch Coil Installer Adapter
J 33025 Clutch Coil Puller Legs
J 8433 Compressor Pulley Puller
J 8433-3 Forcing Screw

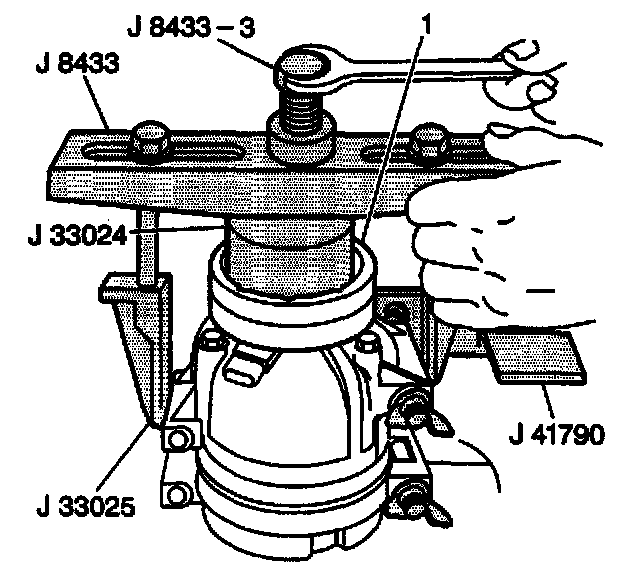

Figure 16 - Installing Clutch Coil Assembly:

Install or Connect

1. Place the clutch coil assembly (1) on the front head with the clutch coil terminal at the mark made during disassembly.
2. Place the J 33024 over the internal opening of the clutch coil housing and align installer with the compressor front head.
3. Install the J 8433-3 into the J 8433 and center the screw in the countersunk center hole of the J 33024.
4. Install the 4 inch through bolts and washers from the J 42136 tool kit into the S 33025 and attach them to the compressor mounting bosses.
5. Turn the center forcing screw of the J 8433 to press the clutch coil onto the front head until the clutch coil is fully seated (Figure 16).

Important
^ Make sure the clutch coil and the J 33024 stay in-line with each other while pressing the clutch coil Onto the compressor.

6. Install the compressor clutch plate and hub assembly.
7. Remove the compressor from the J 41790.
8. Install the compressor into the vehicle.
