Clutch Plate and Hub Assembly

Tools Required
J 33027-A Clutch Hub Holding Tool
J 33013-B Hub and Drive Plate Installer
J 41790 Compressor Holding Fixture

Figure 1 - Disassembled View V7 Compressor:

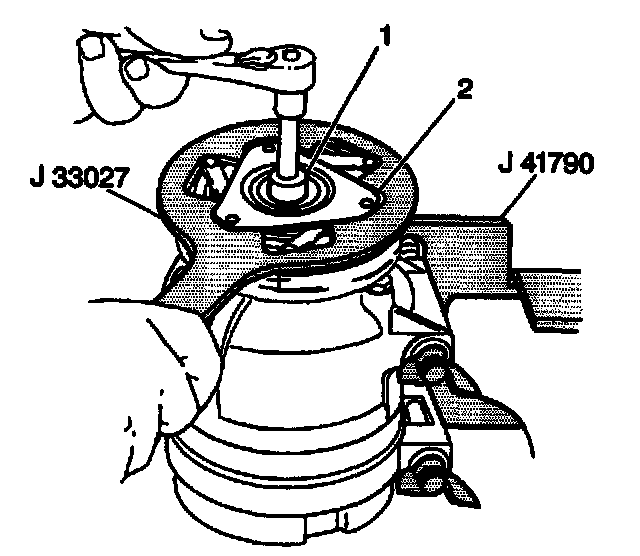

Figure 2 - Removing Shaft Nut:

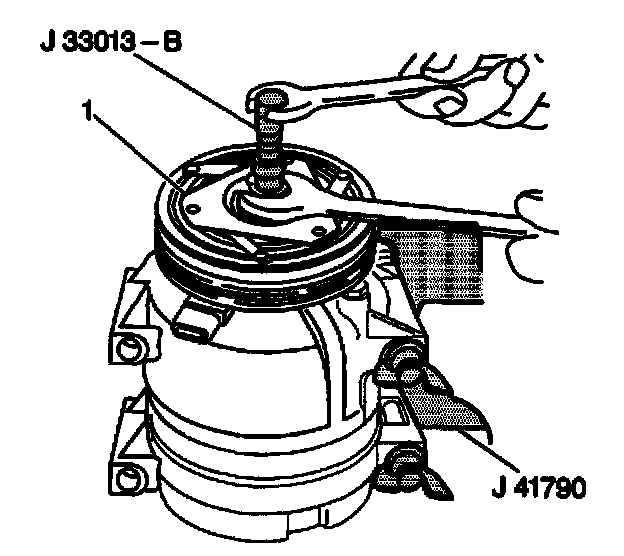

Figure 3 - Clutch Plate And Hub Assembly Removal:

Remove or Disconnect

1. Clamp the holding fixture J 41790 in a vise and attach compressor to holding fixture (Figure 1).
2. Keep the clutch hub and drive plate assembly from turning by using the clutch hub holding tool J 33027-A. Remove the compressor shaft nut using a 13 mm socket (1) (Figure 2).
3. Thread the Clutch Plate and Hub Assembly Remover J 33013-B into the hub. Hold the body of the remover with a wrench and turn the center screw into the remover body to remove the clutch plate and hub assembly.
4. Remove the shaft key and retain for reassembly (Figure 3).

Tools Required
J 33013-B Hub and Drive Plate Installer
J 33027-A Clutch Hub Holding Tool
J 33017 Pulley and Bearing Assembly Installer

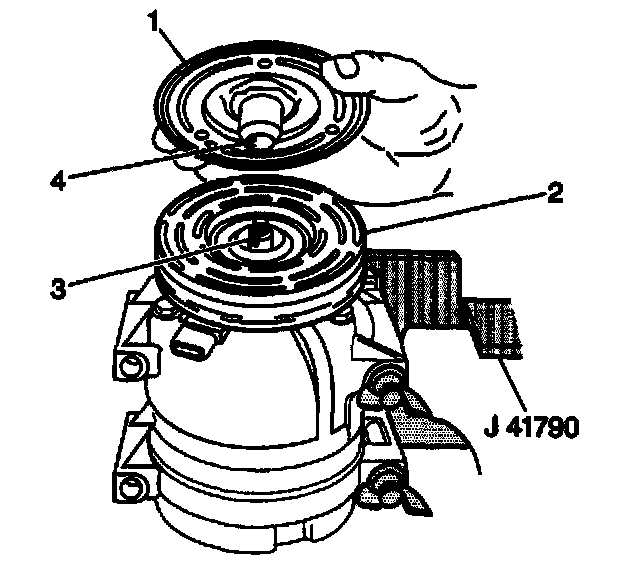

Figure 4 - Shaft Key, Clutch Plate, And Hub Installation:

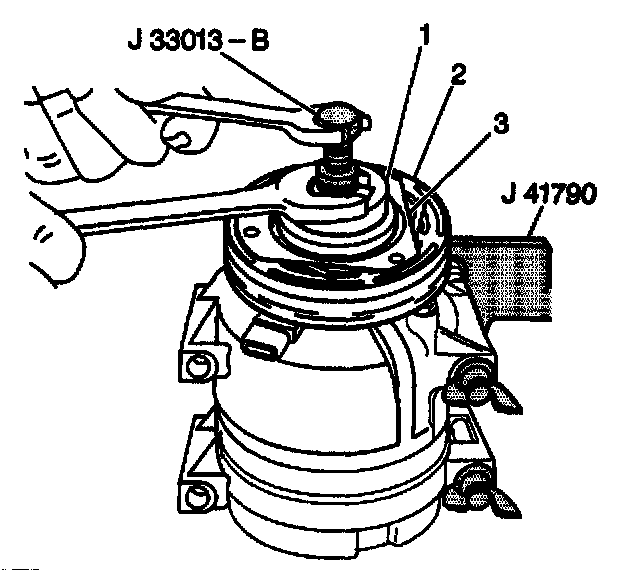

Figure 5 - Installing Clutch Plate And Hub Assembly:

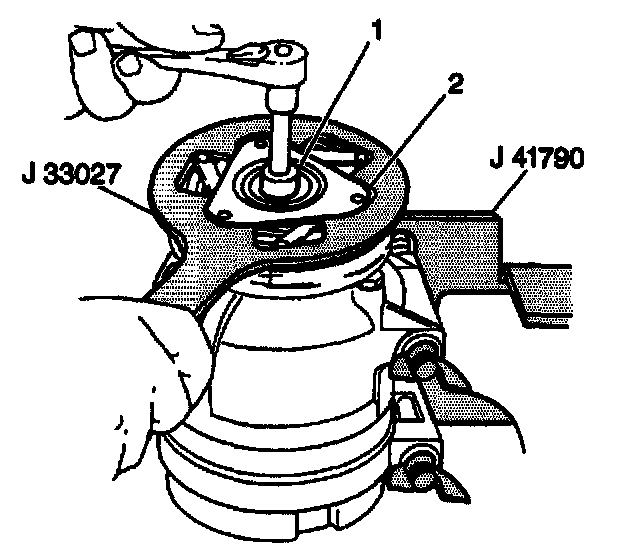

Figure 6 - Installing Compressor Shaft Nut:

Install or Connect

1. Install the shaft key into the hub key groove (Figure 4). Allow the key to project approximately 3.175 mm (1/8 inch) out of the keyway. The shaft key is curved slightly to provide an interference fit in the hub key groove.
2. Clean the surfaces of the clutch plate (1) and clutch rotor (2) before installing the clutch plate and hub assembly.
3. Align the shaft key with the shalt keyway and place the clutch plate and the hub assembly onto the compressor shaft.

NOTICE: Do not drive or pound on the clutch hub or shaft. Internal damage to compressor may result.

4. Remove the remover-installer center screw and reverse the body direction on the center screw as shown in (Figure 5).
5. Install the clutch plate and hub installer J 33013-B with bearing as shown in Figure 5.
^ Back the body of the hub and drive plate installer tool off enough to allow the center screw to be threaded onto the end of the compressor shaft.
^ Thread the center screw several turns onto the end of the compressor shaft. Do not tighten the center screw on the compressor shaft.
6. Hold the center screw with a wrench.
^ Tighten the hex portion of the hub and drive plate installer body several turns.
^ Remove the hub and drive plate installer from the clutch plate and hub.
^ Make sure that the shaft key is still in place in the keyway.
7. Reinstall the J 33013-B.
8. Place a feeler gage between the clutch plate and the clutch rotor.
9. Tighten the hex portion of the hub and drive plate installer until the air gap between the clutch plate and clutch rotor is 0.40 mm (0.015 inch).
^ Make sure that the air gap is even all around the clutch plate and hub assembly.
10. Remove the J 33013-B.
11. Hold the clutch plate and hub assembly (2) with the J 33027-A.
12. Install the compressor shaft nut.

Tighten
^ Tighten the compressor shaft nut to 18 N.m (13 lb. ft.).

13. Spin the pulley rotor by hand to make sure the rotor is not rubbing against the clutch drive plate.
14. Remove the compressor from the J 41790.
