Engine Flywheel Removal

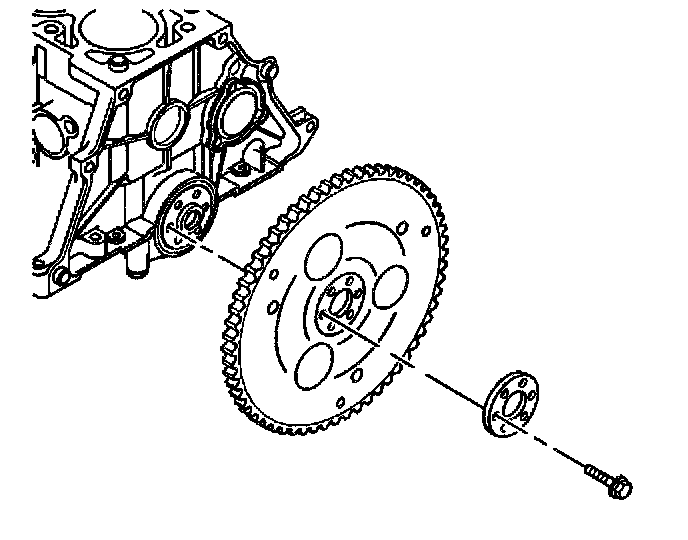

ENGINE FLYWHEEL REMOVAL
1. Remove the flywheel bolts.
2. Remove the flywheel spacer if a flywheel spacer is used.

IMPORTANT: If the flywheel is cracked or damaged replace the flywheel.





3. Remove the flywheel.
