Intake Manifold Installation

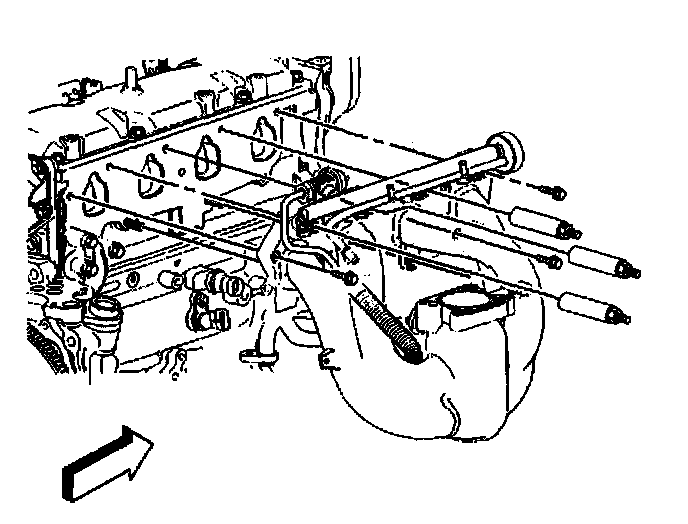

INTAKE MANIFOLD INSTALLATION1. Install the intake manifold gasket.
2. Install the intake manifold.
3. Install the intake manifold bolts.
NOTICE: Refer to Fastener Notice in General Information.
^ Tighten the bolts in sequence to 24 Nm (17 ft. lbs.).
4. Install the EGR adapter to the cylinder head.
5. Install the EGR adapter to cylinder head bolts.
^ Tighten the EGR adapter bolts to 11 Nm (97 inch lbs.).
6. Install the throttle body to the intake manifold.
^ Tighten the throttle body to intake manifold bolts to 10 Nm (89 inch lbs.).

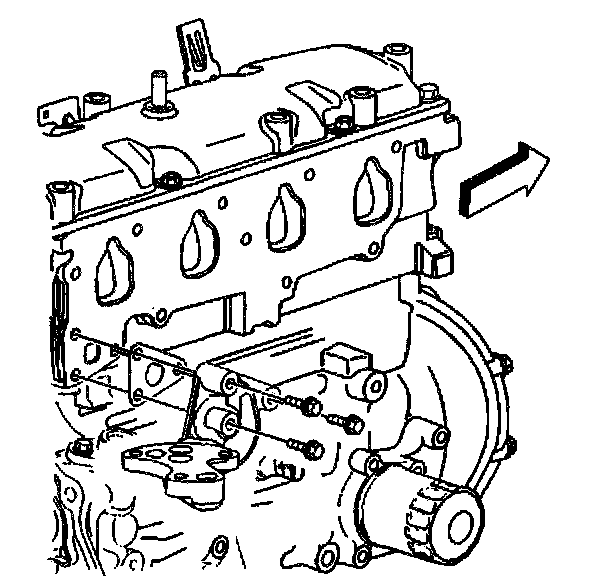

7. Install the fuel rail bracket.
