Intake Manifold Removal
INTAKE MANIFOLD REMOVAL 1.

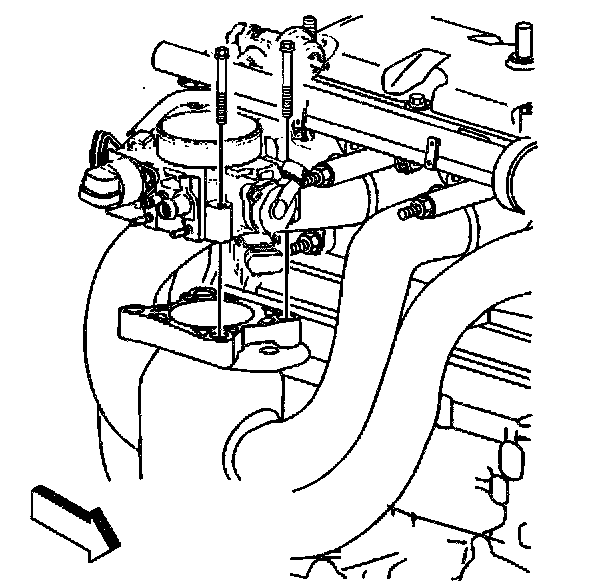

Remove the throttle cable support bracket and throttle body.
2.
Remove the throttle body.
3.

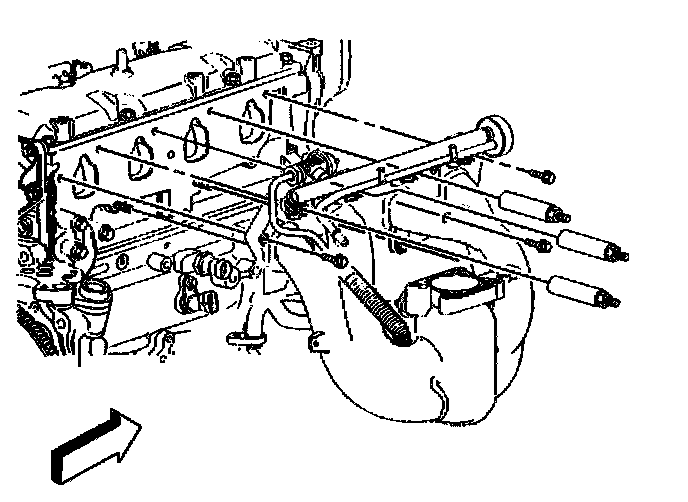

Remove the
intake manifold bolts.
4.
Remove the fuel rail bracket.
5.
Remove the
intake manifold nuts.
6.
Remove the
intake manifold.
