OIL PAN INSTALLATION

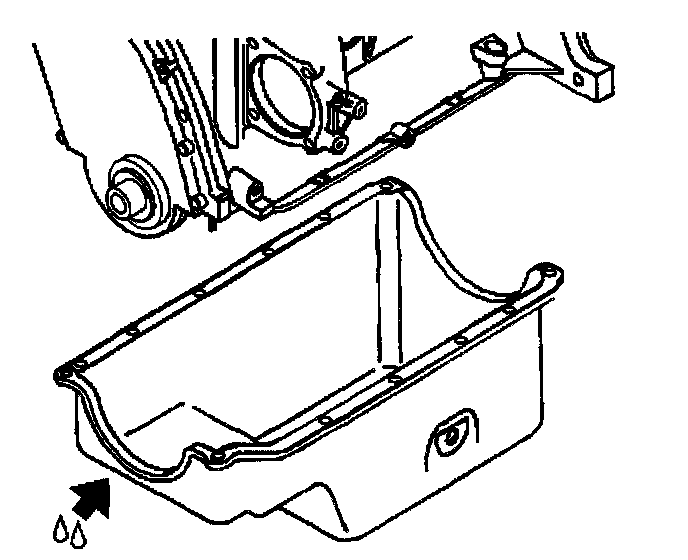

1. Apply a 5 mm (0.193 inch) diameter bead of GM P/N 12346286 or equivalent to the oil pan side sealing flanges.

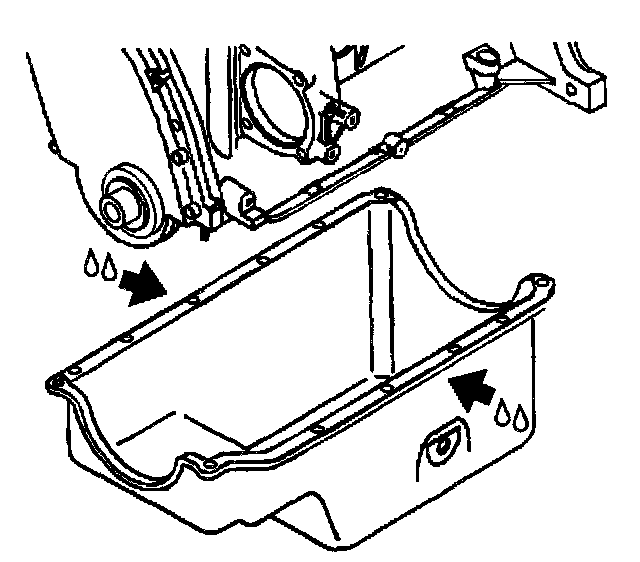

2. Apply GM P/N 12346286 or equivalent to the oil pan surface that contacts the engine front cover.

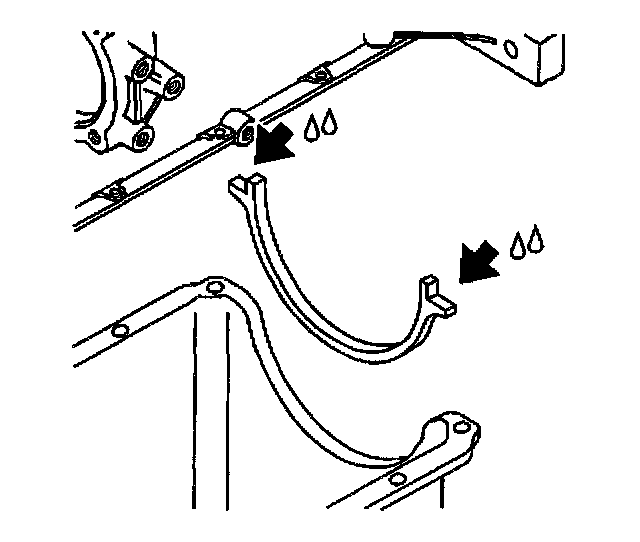

3. Install a new oil pan rear seal. Apply a small amount of GM P/N 12346286 or equivalent to the oil pan rear seal ears.

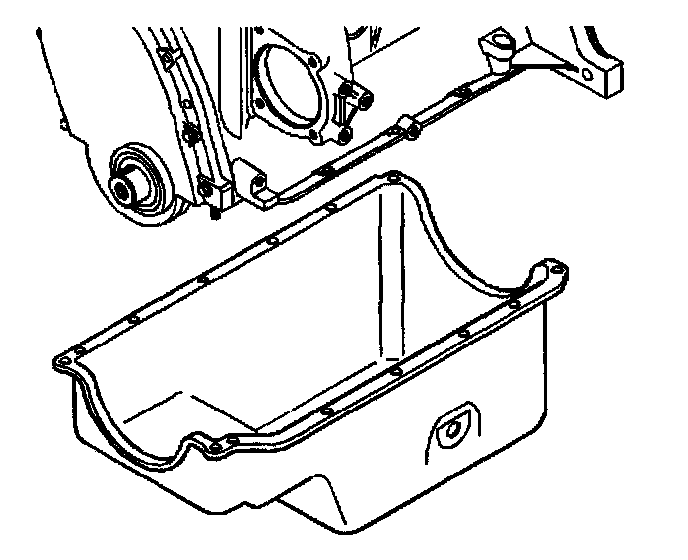

4. Install the oil pan.

NOTICE: Refer to Fastener Notice in Service Precautions.

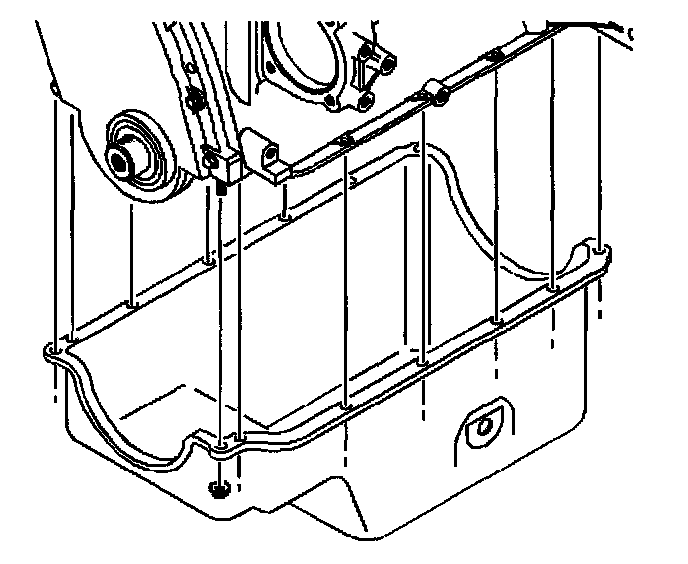

5. Install the oil pan nuts.
^ Tighten the oil pan nuts to 10 Nm (89 inch lbs.).

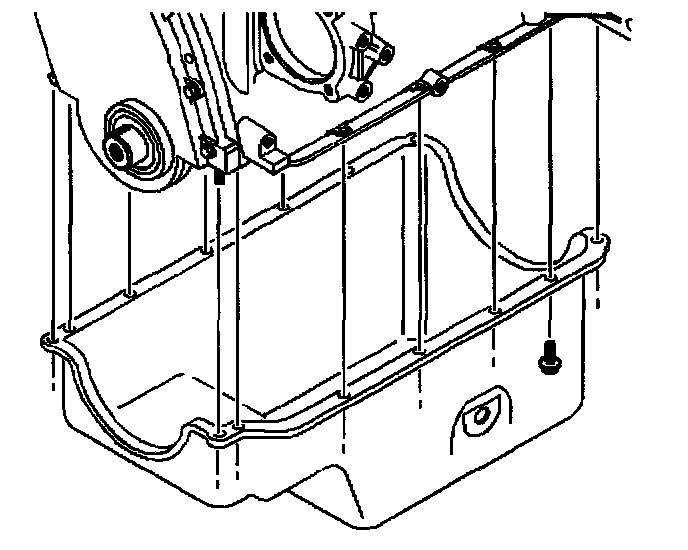

6. Install the oil pan bolts.
^ Tighten the oil pan bolts to 10 Nm (89 inch lbs.).
