Home >> Chevrolet >> 1998 >> Cavalier L4-2.2L VIN 4 >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Diagrams >> Heater-A/C and Rear Defogger Control Assembly >> C3

C3

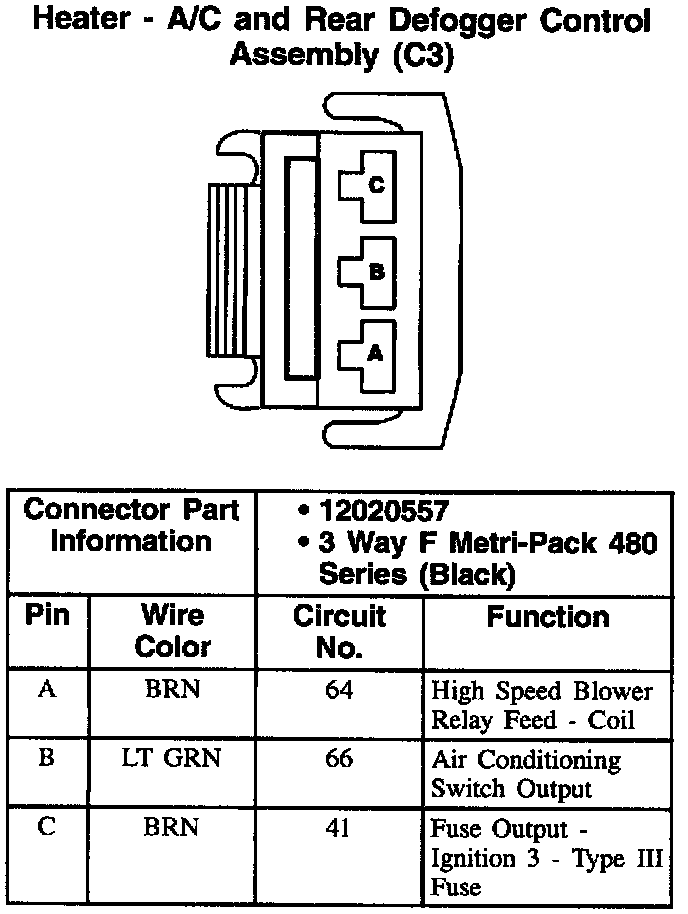

Heater - A/C And Rear Defogger Control Assembly (C3):
