Scan Tool Data Values

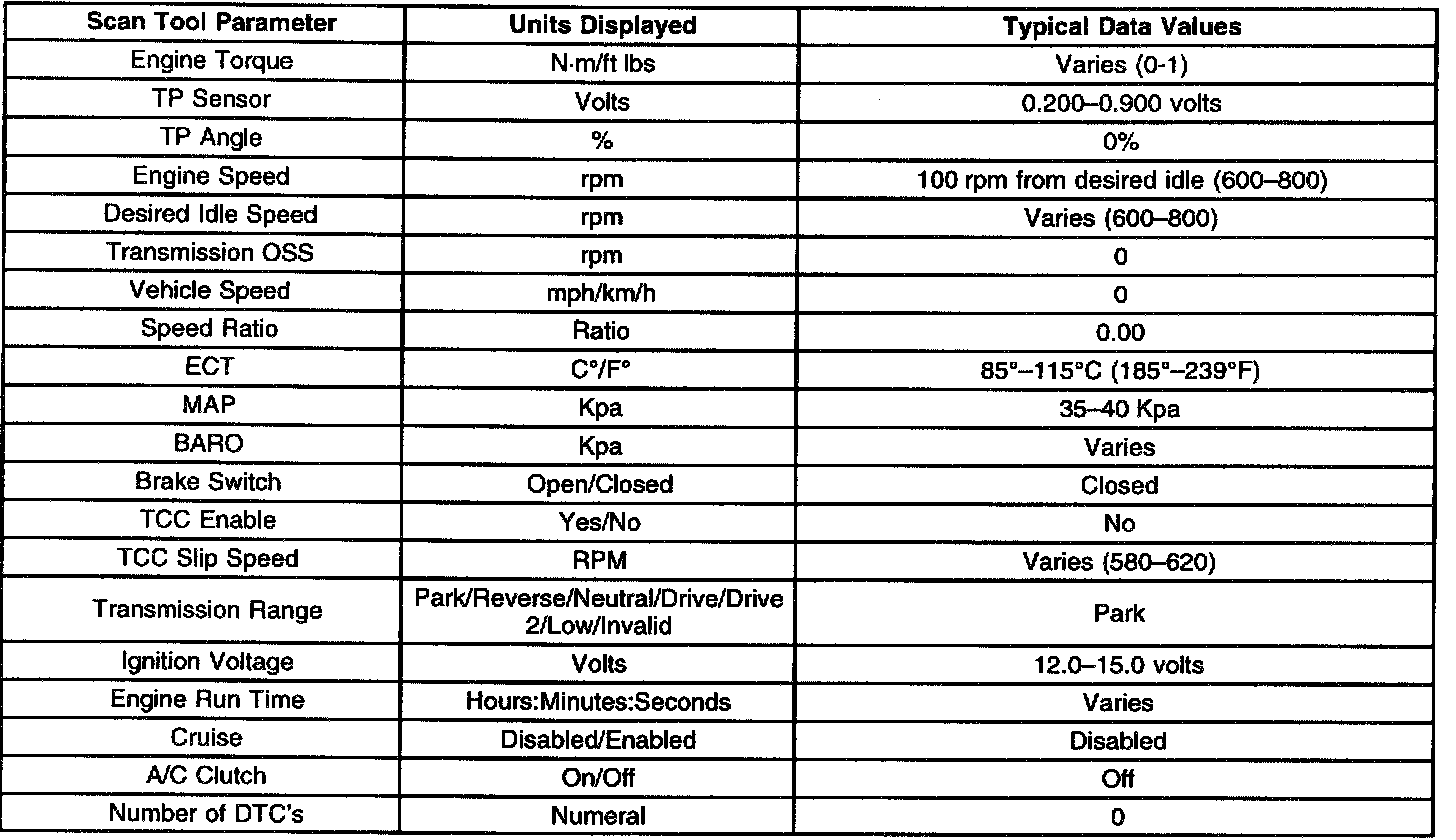

If you have completed the On-Board Diagnostic (OBD) system check, if the diagnostics are functioning properly and if no DTCs display, you may use the Typical Scan Tool Data Values in the table below for comparison with the appropriate transmission. These typical values are an average of display values recorded from normally operating vehicles. They represent the display from a normally functioning system.
You should never use a scan tool that displays faulty data. The problem should be reported to the manufacturer. The use of a faulty scan tool can result in misdiagnosis and the unnecessary replacement of parts.
Only the parameters listed below are used in this manual for diagnosing. If a scan tool displays other parameters, the values are not recommended by General Motors for use in diagnosis. Scan values are performed under the following conditions:
^ Idle
^ Upper radiator hose is hot
^ Closed throttle
^ Park
^ Closed Loop
^ Accessories OFF
^ Brake not applied
