Steering Mounted Controls Transmitter: Service and Repair

Steering Wheel Control Switches Replacement

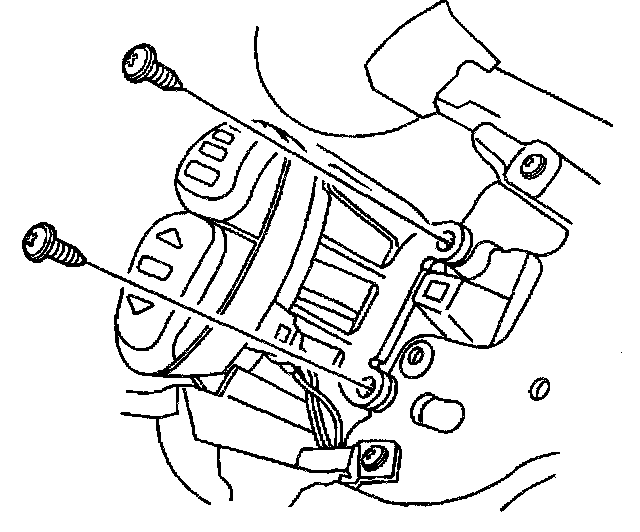

REMOVAL PROCEDURE





1. Remove the steering wheel module.
2. Remove the horn plunger.
3. Remove the steering wheel redundant control switch mounting screws.





4. Disconnect the steering wheel redundant control switch electrical connector.
5. Remove the steering wheel redundant control switch from the steering wheel.

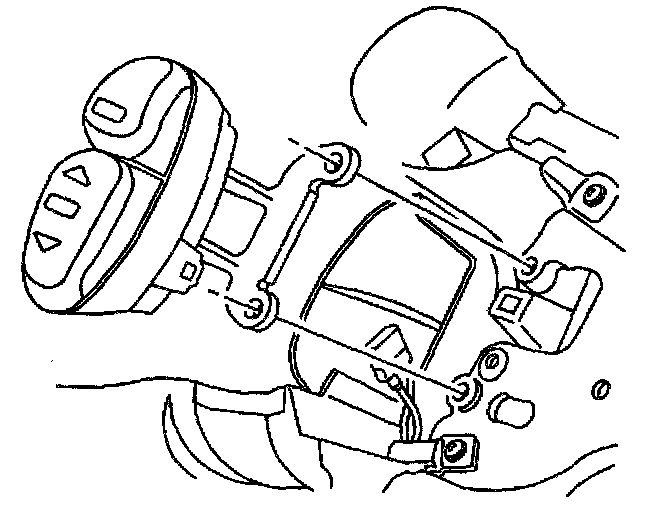

INSTALLATION PROCEDURE





1. Install the steering wheel redundant control switch to the steering wheel.
2. Connect the steering wheel redundant control switch electrical connector.





NOTE: Refer to Fastener Notice in Cautions and Notices.

3. Install the steering wheel redundant control switch mounting screws.

Tighten
Tighten the steering wheel redundant control switch mounting screws to 2 N-m (20 lb in).

4. Install the horn plunger.
5. Install the steering wheel module.
