f. Detent Spring Clean and Inspect

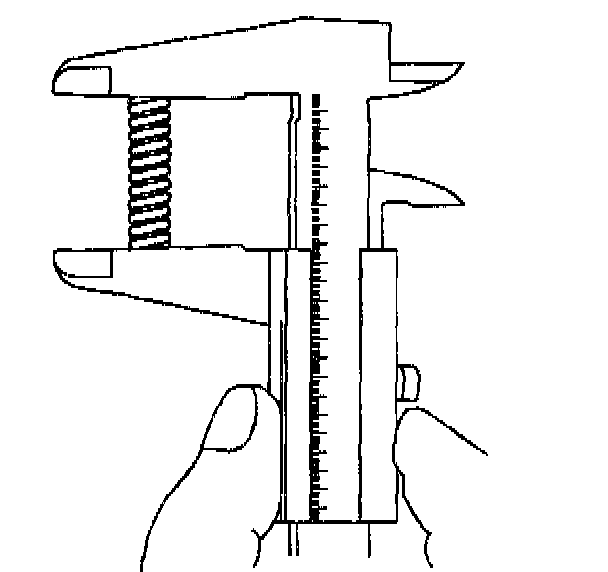

Inspect the detent springs for damage or wear. Replace the springs if damage or wear exists. Measure the spring length. Replace the spring if these are not within the following specifications:
^
Reverse-Greater than
65.6 mm (2.583 inch) ^
Except reverse-Greater than
26.2 mm (1.031 inch)
