Door Inside Handle and Power Door Lock Switch

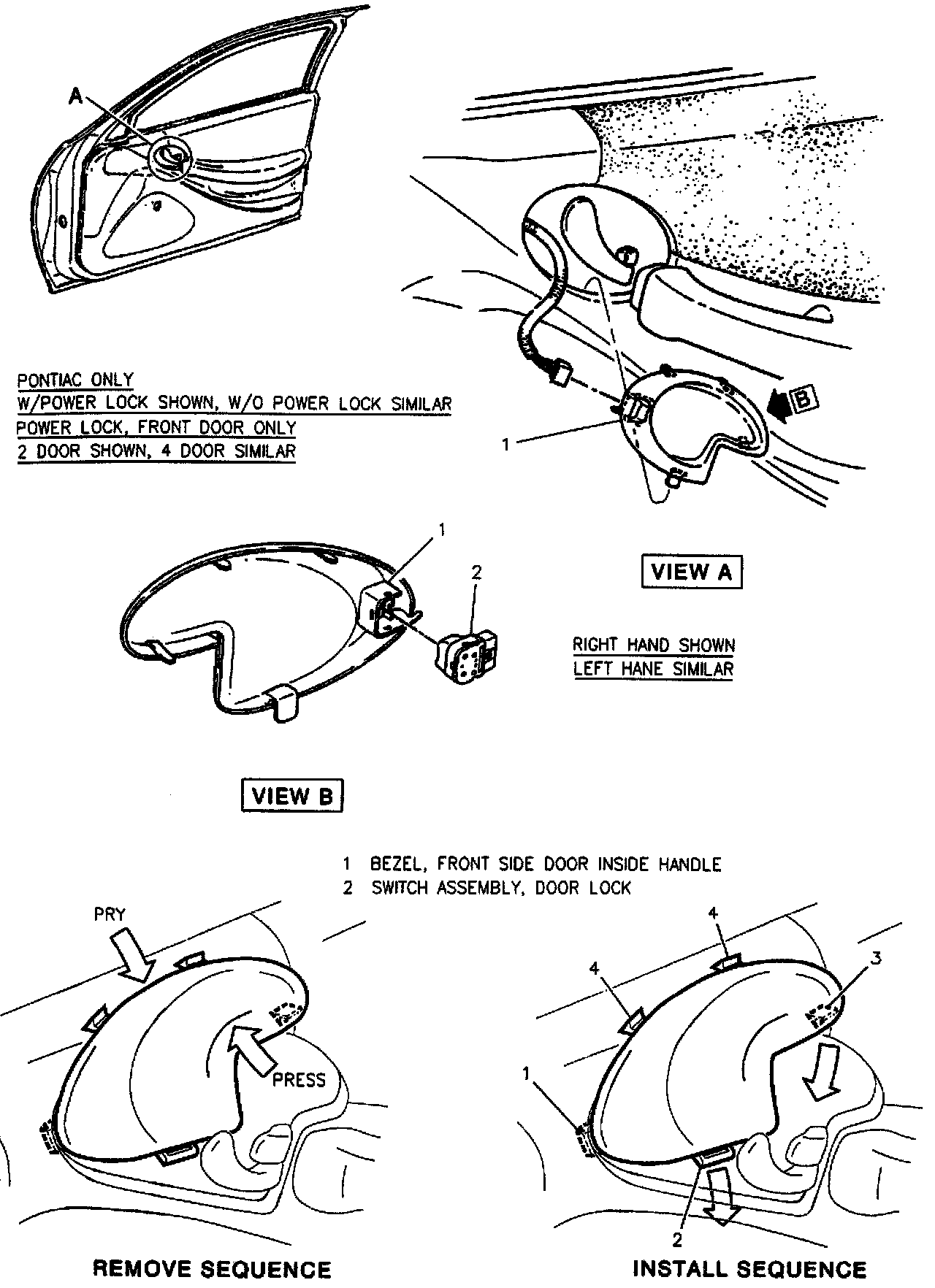

DOOR INSIDE HANDLE BEZEL AND POWER DOOR LOCK SWITCH

Door Inside Handle Bezel And Power Door Lock Switch - Pontiac:

REMOVE OR DISCONNECT
1. Pull door inside handle to the full open position.
2. Press on inside handle bezel.
3. Pry door inside handle bezel from top using a flat blade tool.
4. Pull door inside bezel upward.
5. (Front Door Only) Door lock switch wire harness.
6. Front door inside bezel.

INSTALL OR CONNECT
1. (Front Door Only) Door lock switch wire harness.
2. Pull door inside handle to the full open position.
3. Insert front tab on door inside bezel to locating notch behind front edge of opening in door trim panel.
4. Push door inside bezel downward to insert lower tab behind lower edge of door trim panel.
5. Insert rear most lowest tab of door inside bezel to edge of door trim panel.
6. Snap into place the top two tabs on door inside bezel.
