Home >> Chevrolet >> 1998 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Connector Views >> Data Link Connector >> #2

#2

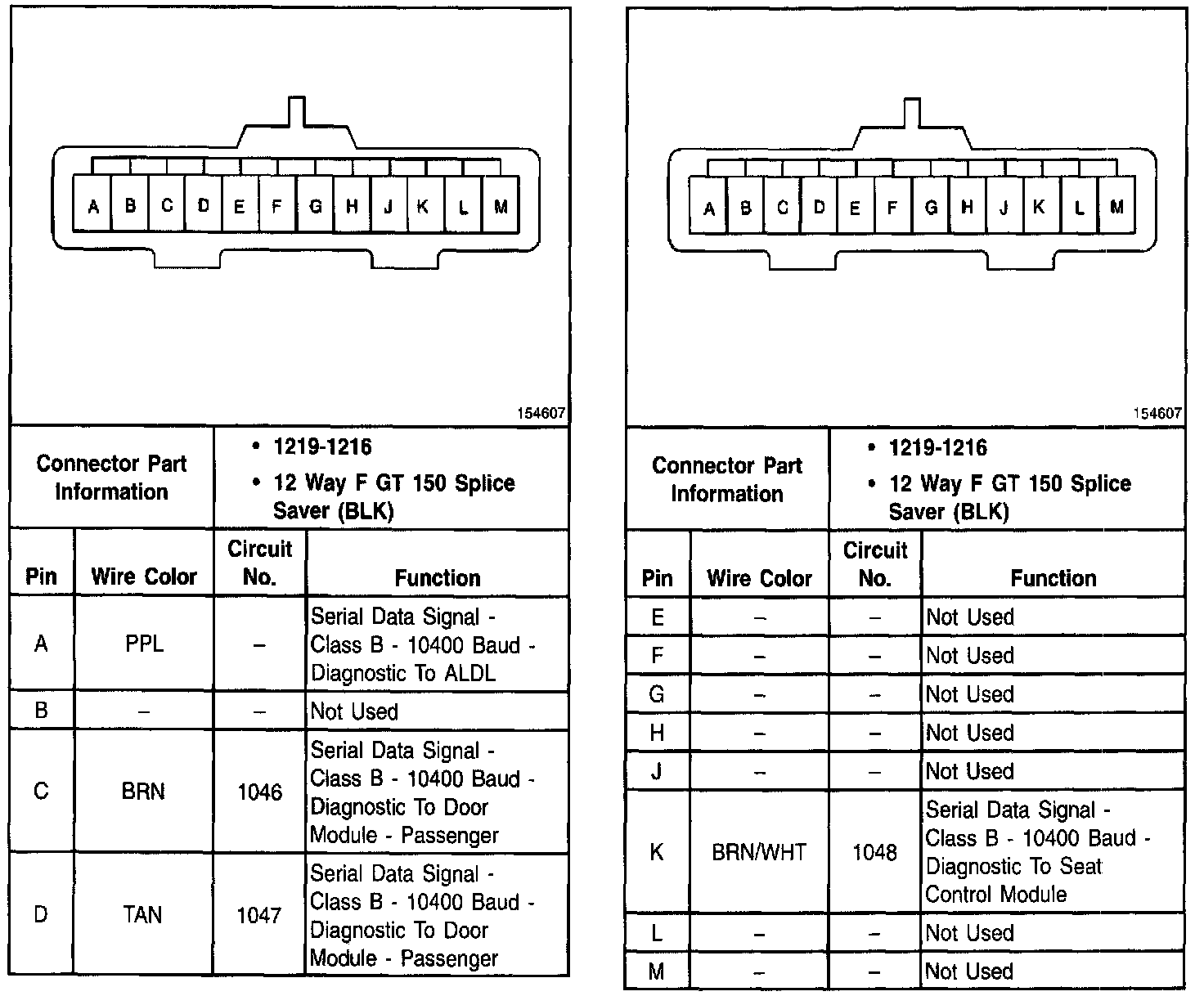

Star Connector #2:
