Chevrolet
>>
1998
>>
Corvette V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

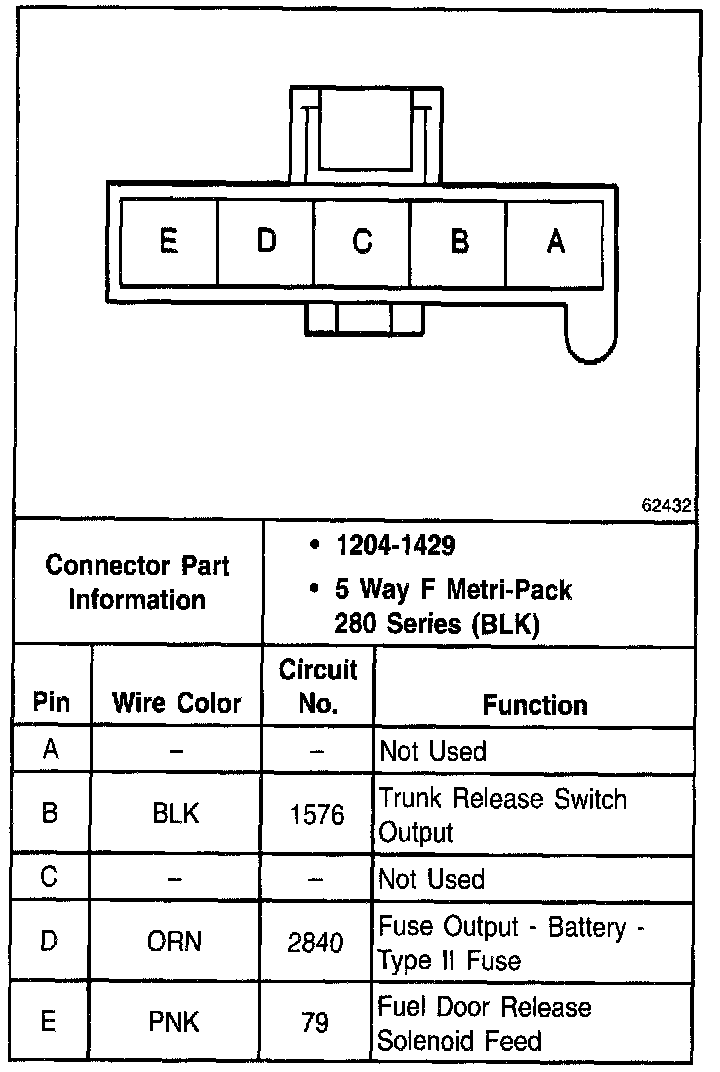

Fuel Door Lock Switch
Fuel Door Lock Switch
Fuel Tank Filler Door Release Switch:
