Corvette V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Drive/Propeller Shaft
>>
4T60-E Automatic Transaxle
>>

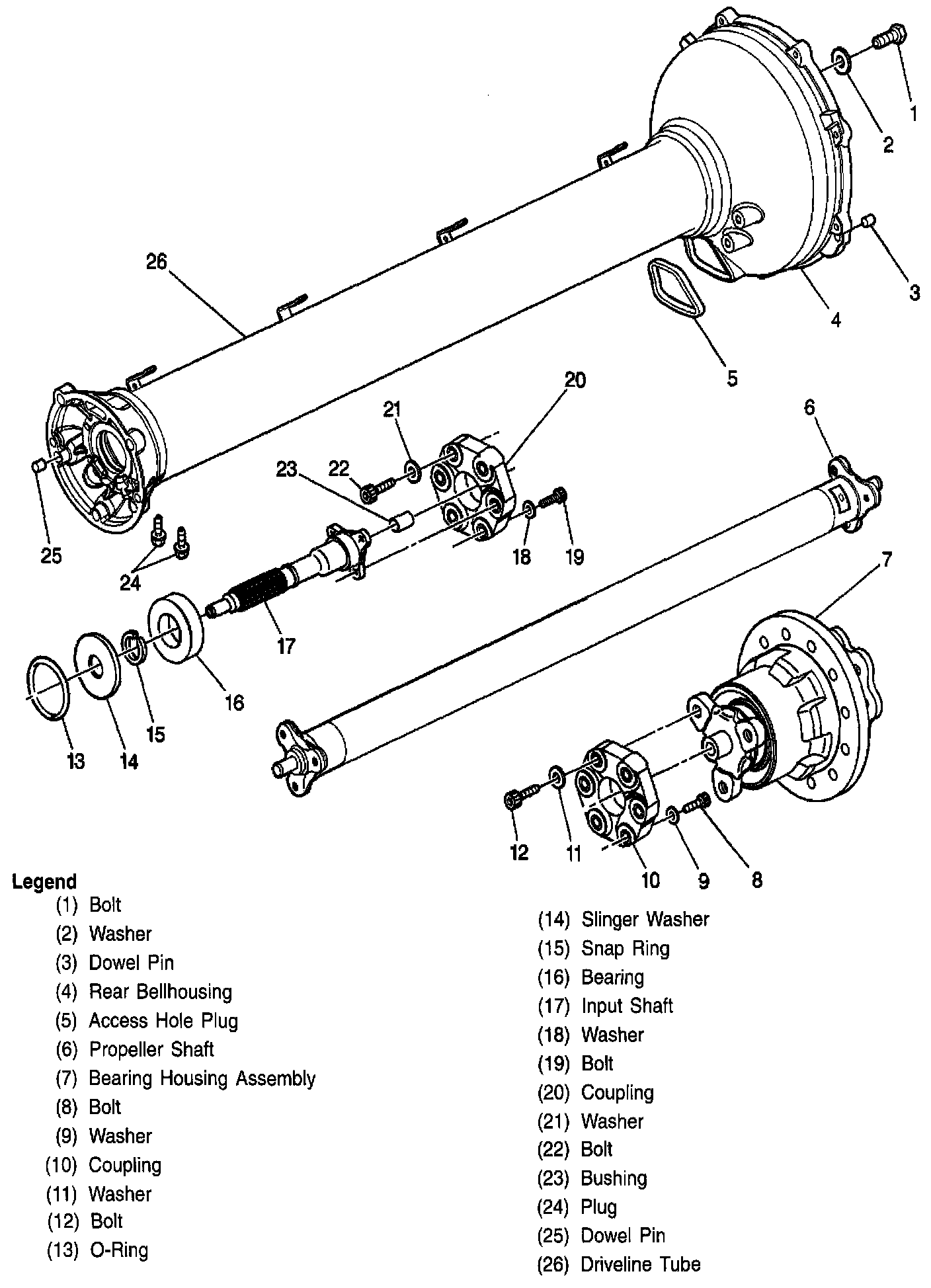

Driveline Assembly
Driveline Assembly
