I/P Fuse Block

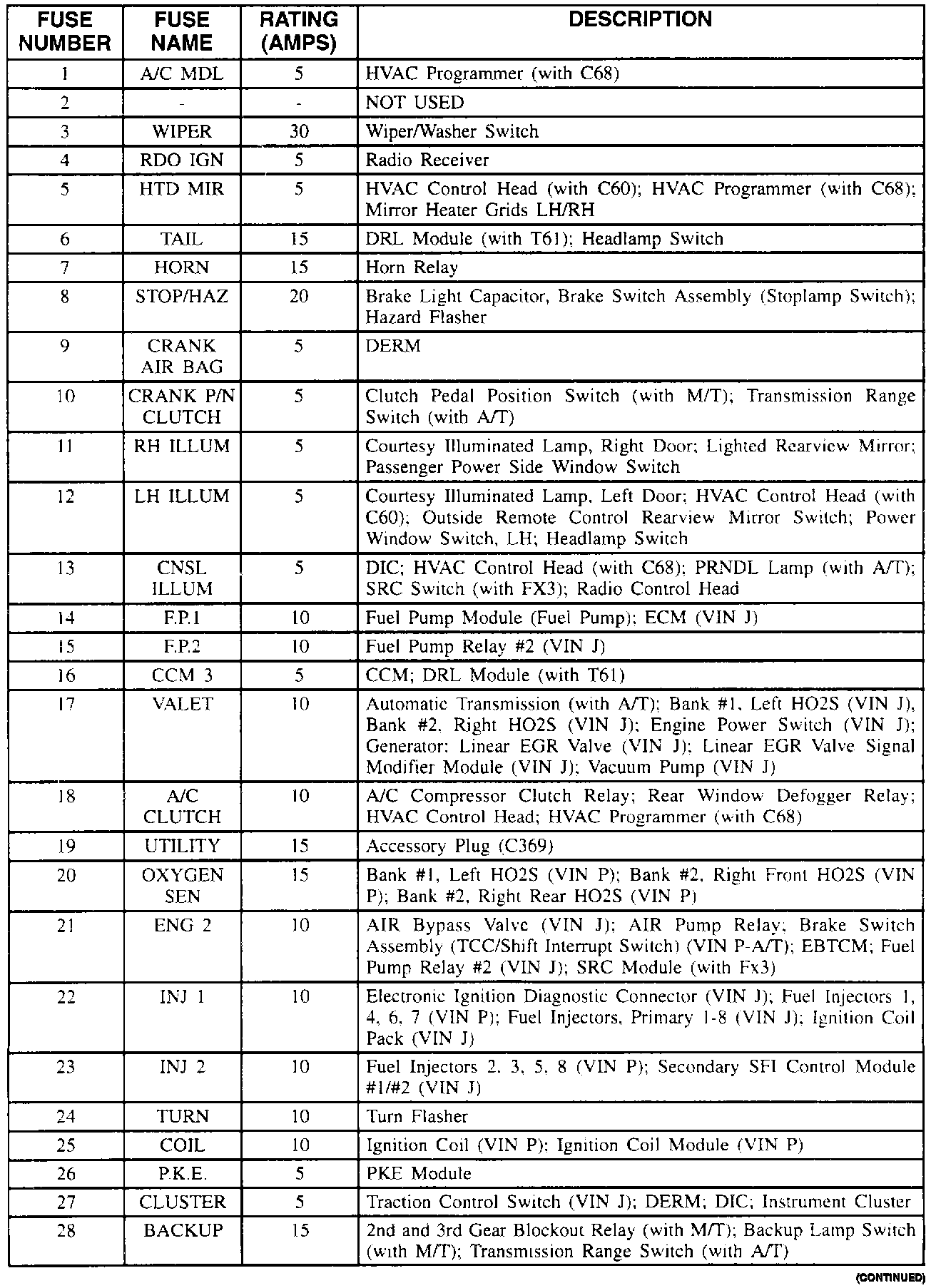

I/P Fuse Block: Fuse Application Chart (Part 1 Of 2):

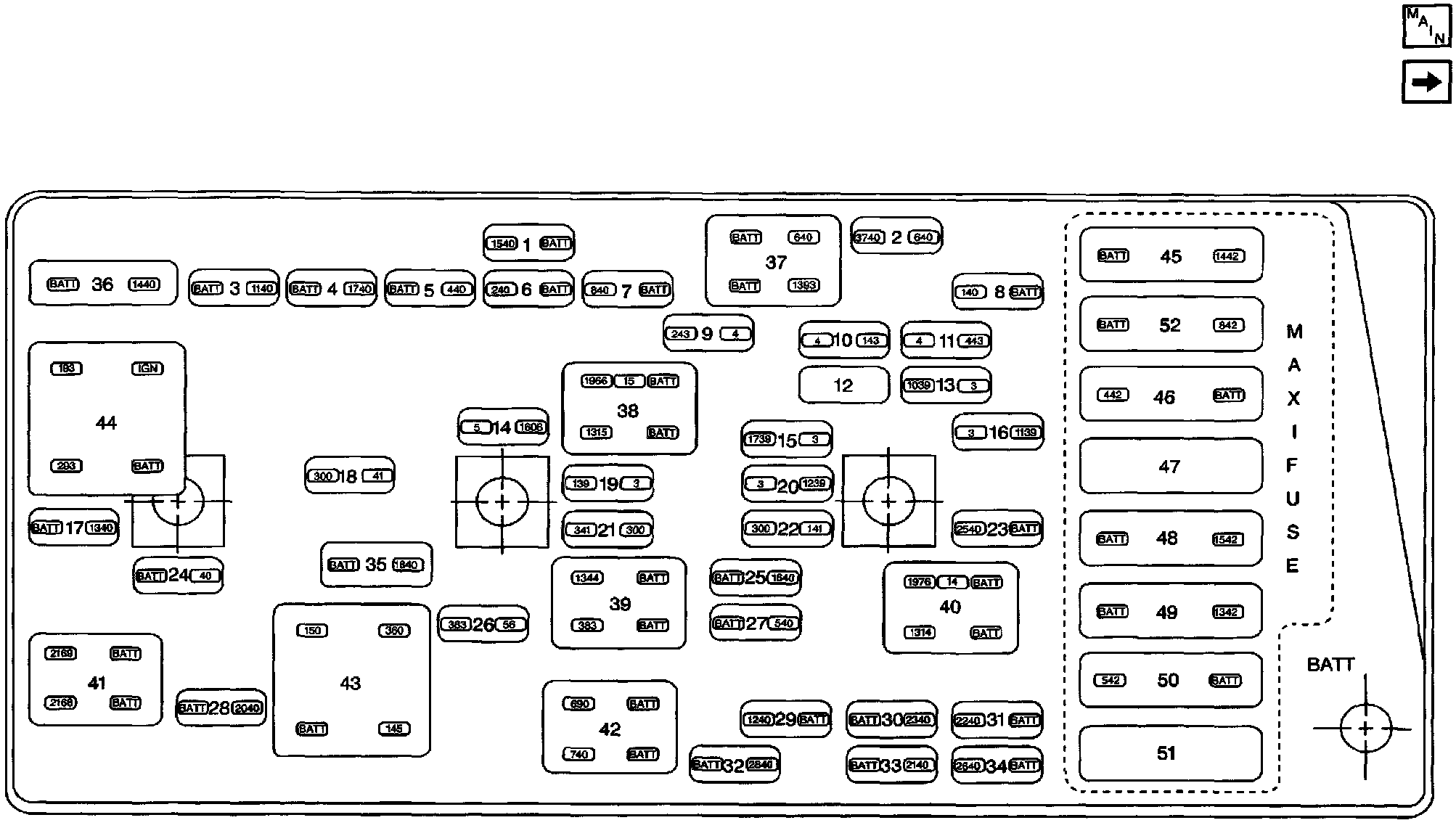

Power Distribution Schematic: Instrument Panel Electrical Center:
