Electronic Column Lock Module

REMOVAL PROCEDURE
^ Tools Required:
- J 23653-SIR Lock Plate Compressor

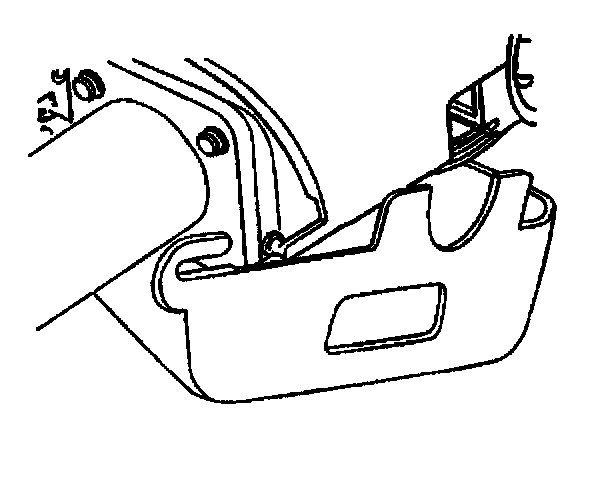

1. Remove the upper and lower steering column shrouds. Refer to STEERING COLUMN SHROUD REPLACEMENT.
2. Remove the snap ring and SIR coil assembly. Refer to INFL RST STEERING WHEEL MODULE COIL (OFF VEHICLE)
3. Let the SIR coil assembly hang freely.





4. Remove the wave washer (2).

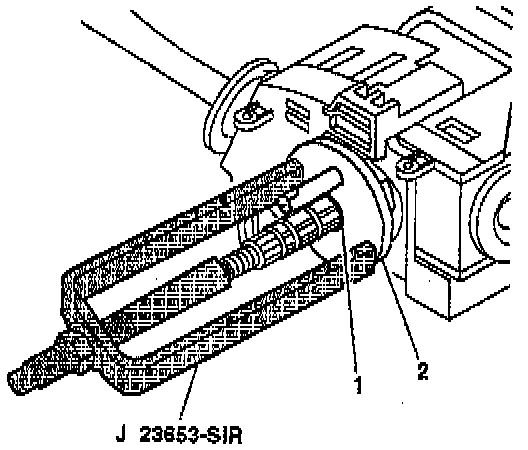

5. Compress the shaft lock shield (2) using J 23653-SIR
6. Remove the retaining ring (1).
7. Remove the J 23653-SIR
8. Remove the shaft lock shield (2).

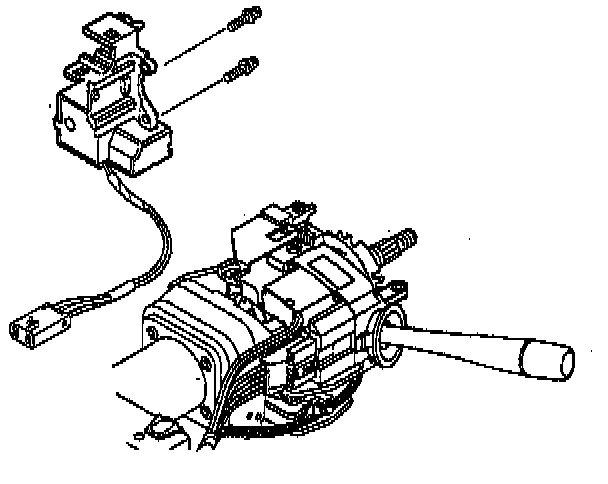

9. Remove the two pan head tapping screws.
10. Remove the electronic column lock from the steering column housing.

INSTALLATION PROCEDURE
1. Install the electronic column lock from the steering column housing.
2. Install the two pan head tapping screws.
- Tighten the pan head tapping screws to 6.0 - 8.0 Nm (53 - 71 inch lbs).

NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.


3. Install the shaft lock shield (2).
4. Compress the shaft lock shield assembly (2) using J 23653-SIR.
5. Install a new retaining ring (1).
6. Remove the J 23653-SIR from the shaft lock shield (2).
7. Install the wave washer (2) to the steering column shaft (1).
8. Install the SIR coil assembly and snap ring. Refer to INFL RST STEERING WHEEL MODULE COIL (OFF VEHICLE).
9. Install the upper and lower steering column shrouds. Refer to STEERING COLUMN SHROUD REPLACEMENT.
