Fluid Pressure Sensor/Switch: Testing and Inspection

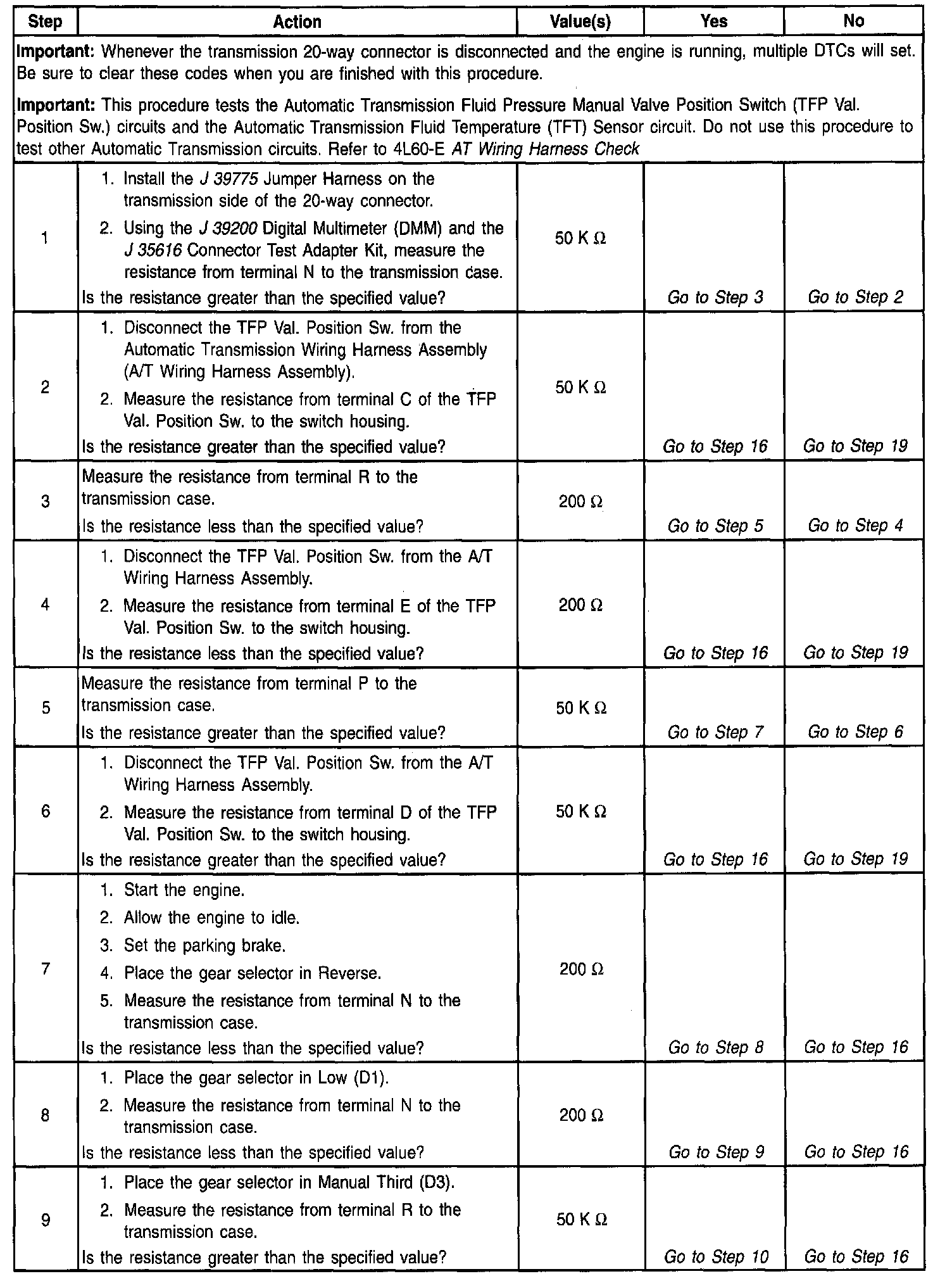

TFP Manual Valve Position Switch Resistance Check - 1 Of 3:

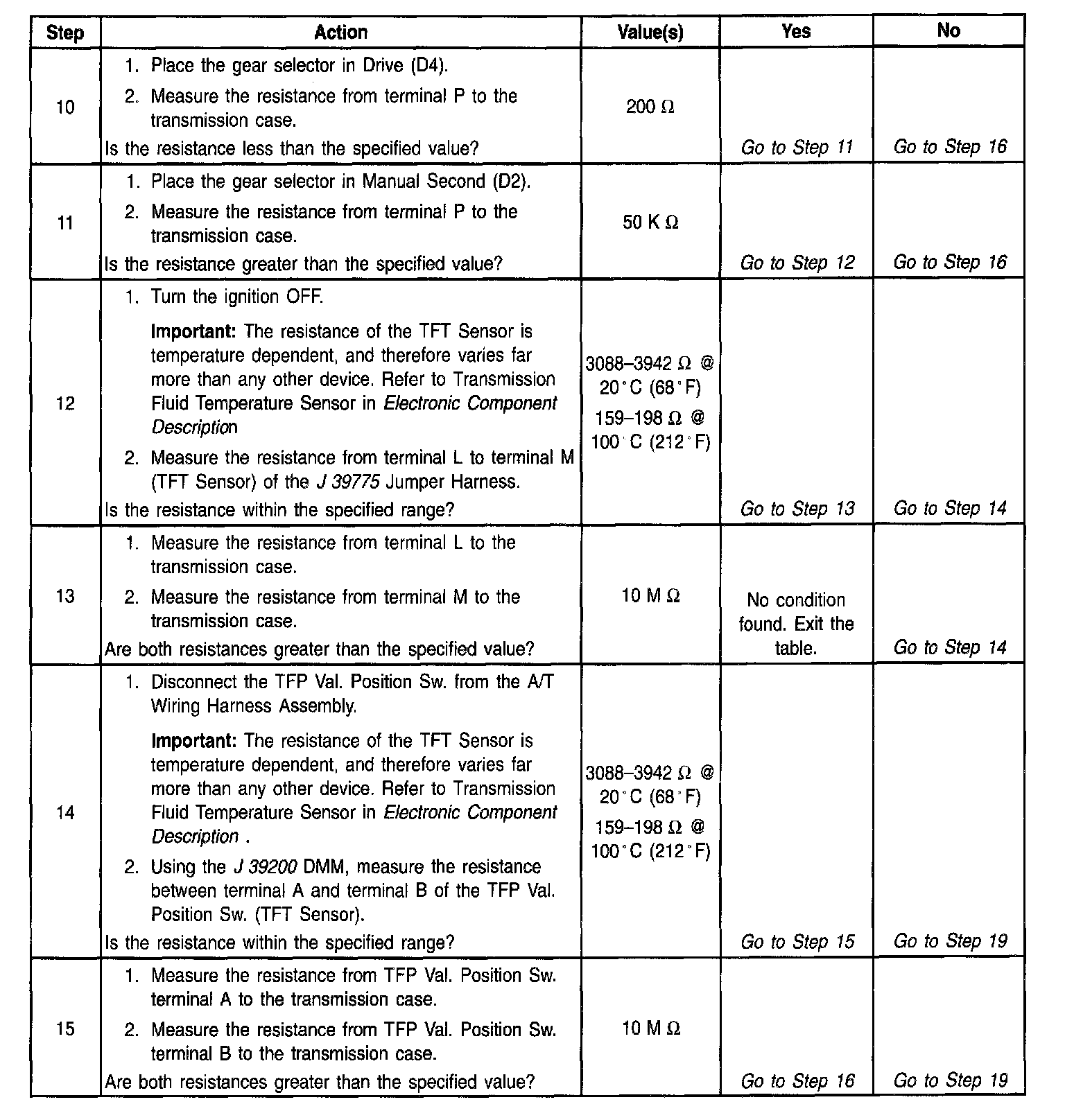

TFP Manual Valve Position Switch Resistance Check - 2 Of 3:



TFP Manual Valve Position Switch Resistance Check - 3 Of 3:
