Hydraulic Brakes
Hydraulic Brakes

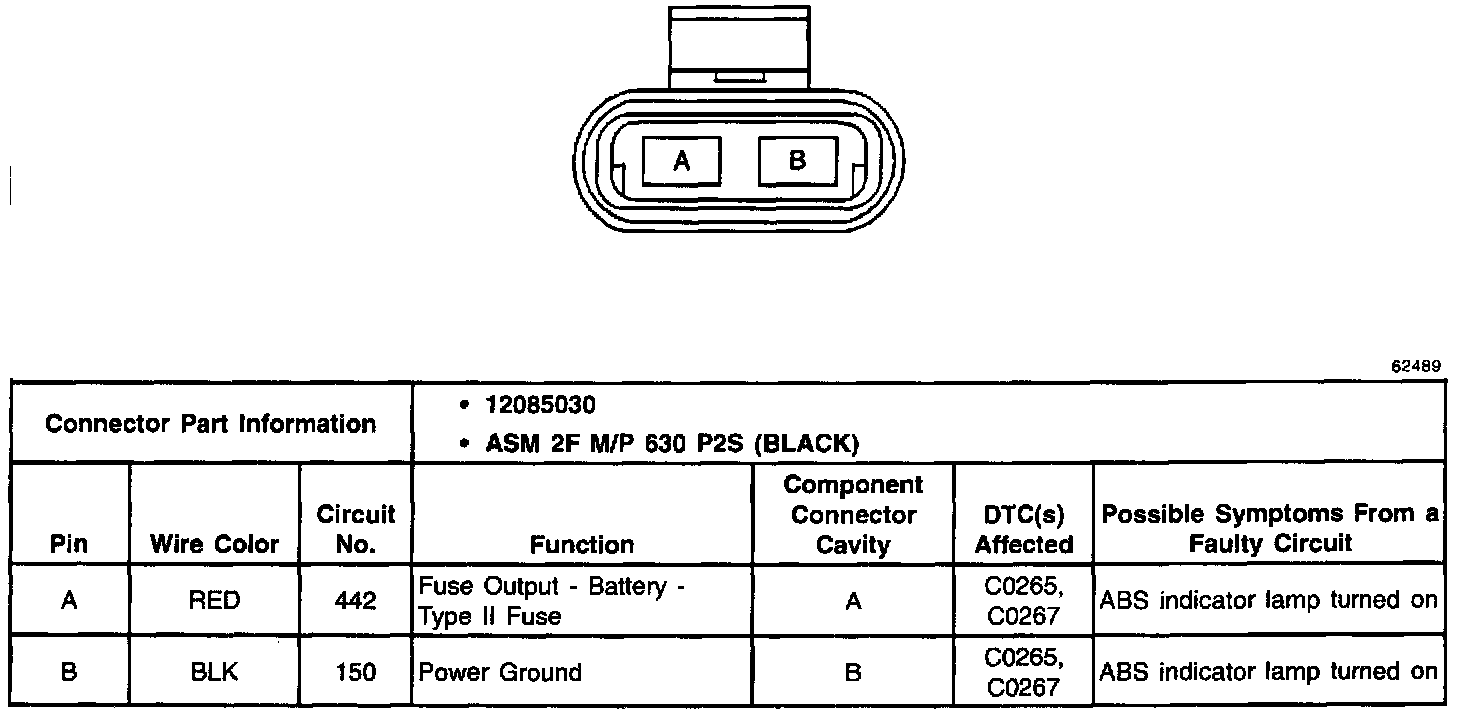

EBCM, Connector C1:

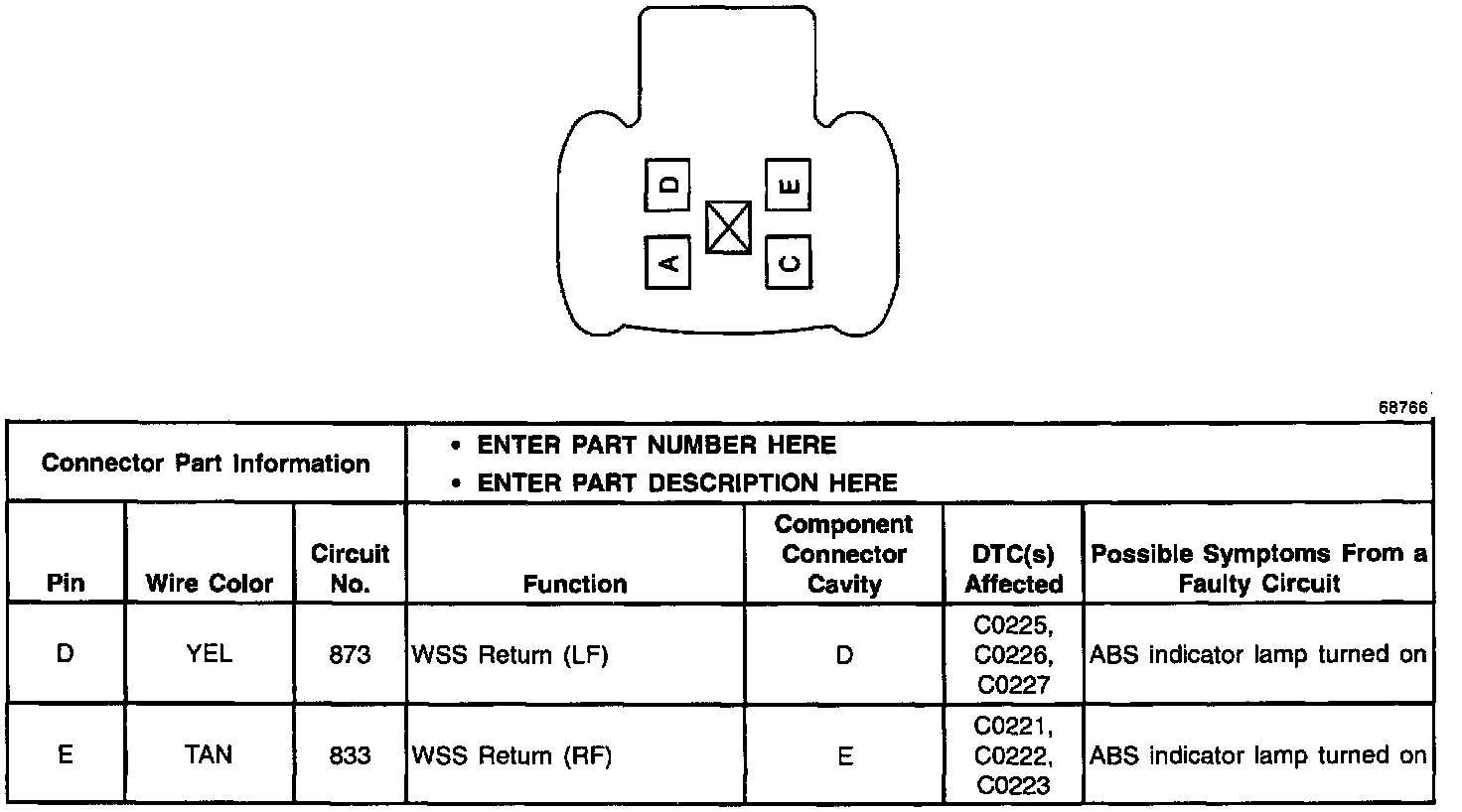

EBCM, Connector C2:

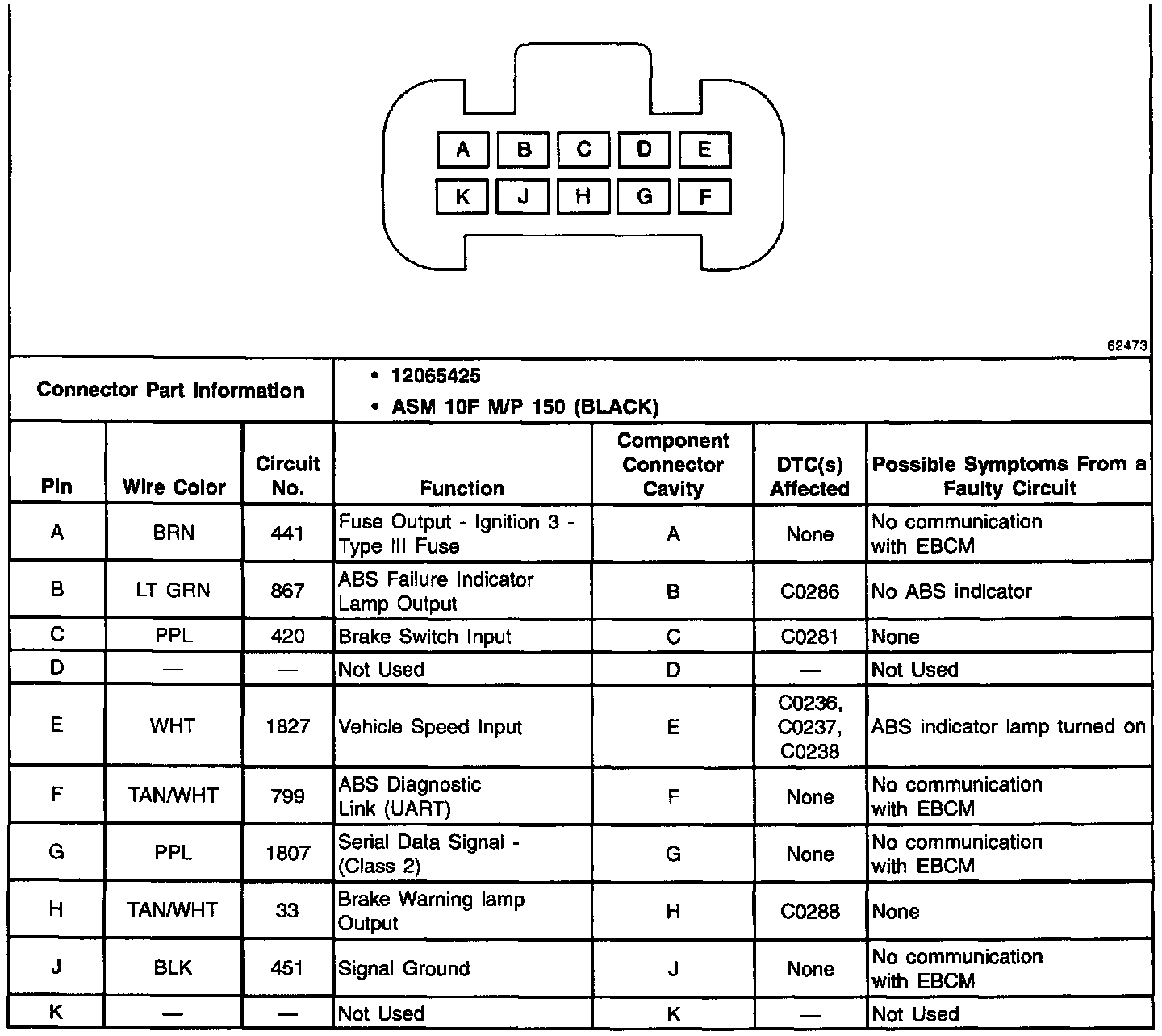

EBCM, Connector C3 (Part 1 Of 2):
EBCM, Connector C3 (Part 2 Of 2):
