Chevrolet
>>
1998
>>
Express 3/4 Ton Van V8-6.5L DSL Turbo VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
4L60-E Automatic Transmission
>>

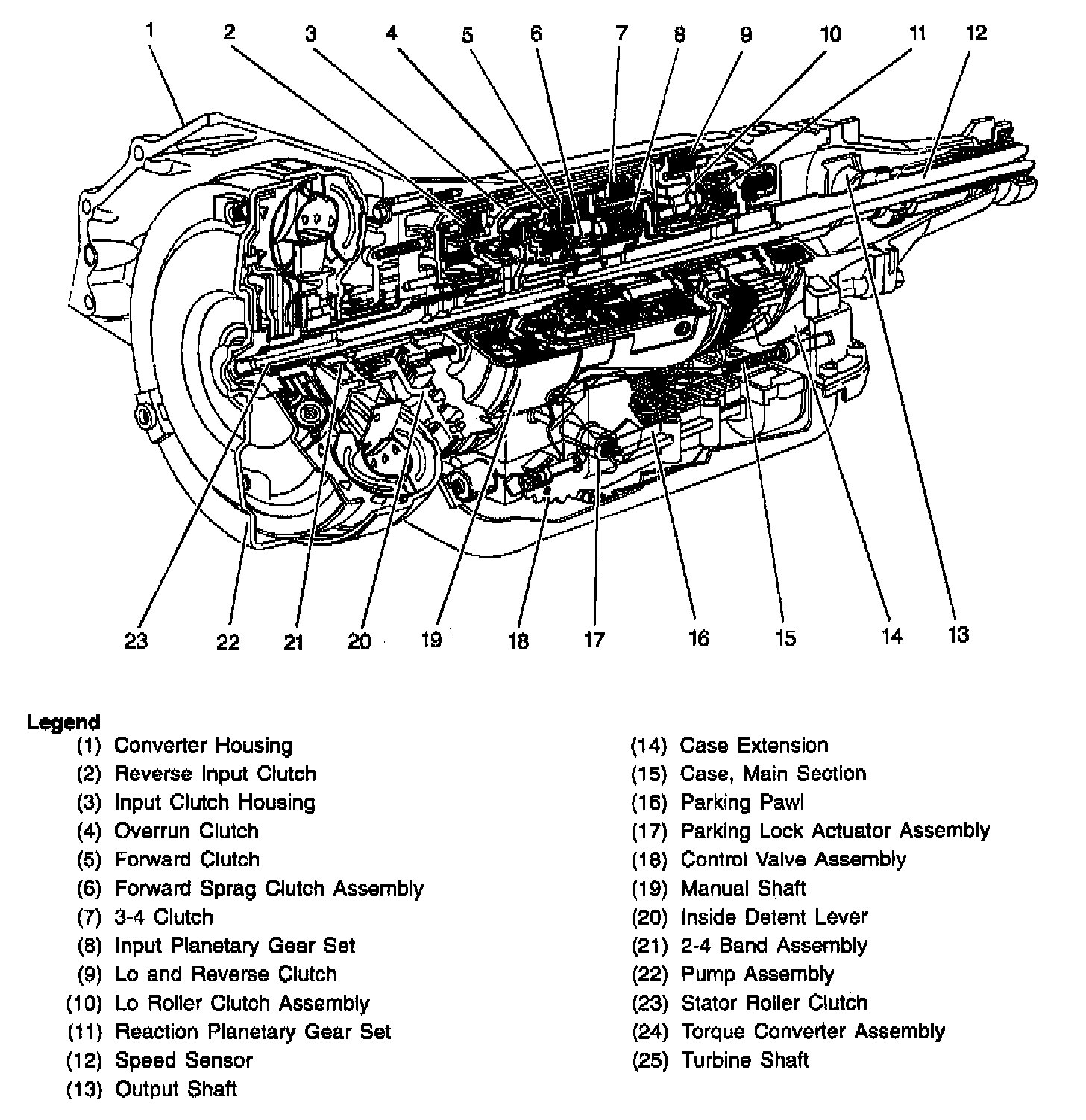

Component Locator View
Component Locator View
