Exhaust Manifold Removal
Exhaust Manifold Removal
1.
Remove the left side
exhaust manifold
bolts.
2.
Remove the left side
exhaust manifold
.

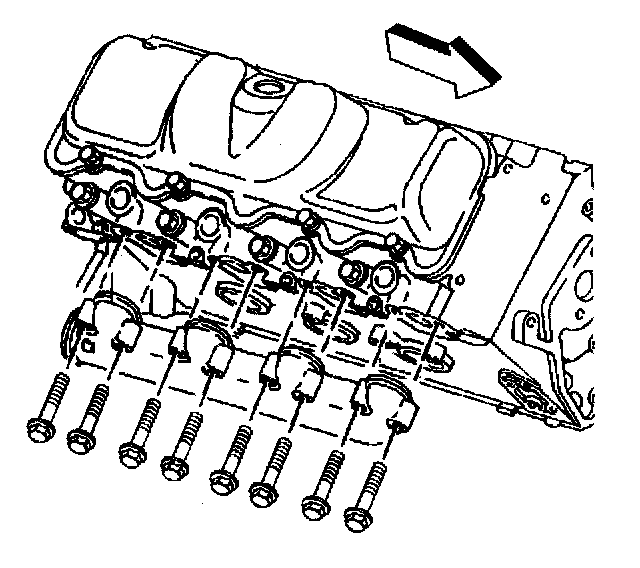

3.
Remove the right side
exhaust manifold
bolts.
4.
Remove the right side
exhaust manifold
.
