Front Toe Adjustment

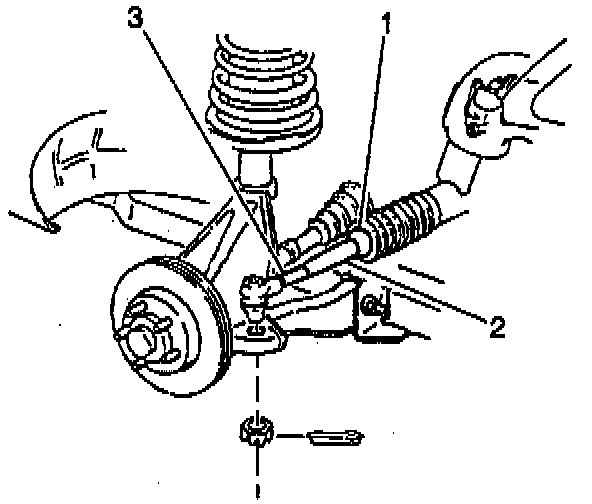

1. Do not allow the power steering gear seals to twist.
2. Remove the small seal clamp (1).
3. Set the steering wheel in the straight ahead position.
4. Loosen the jam nuts (3) on the tie rod.
5. Rotate the inner tie rod (2) to obtain the proper toe angle.
6. Verify that the number of threads showing on each tie rod is nearly equal.

NOTICE: Use the correct fastener in the correct location. Replacement fasteners must be correct part number for that application. Fasteners requiring replacement of fasteners requiring thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and system.

7. Verify that the tie rod ends are square before tightening the tie rod jam nuts.

Tighten
- Tighten the tie rod jam nuts to 62 N.m (46 ft. lbs.).

8. Verify that the power steering gear seals are not twisted.
9. Install seal clamps.
