Chime Module

Chime Module:

For electrical information on the chime module, refer to Procedures.

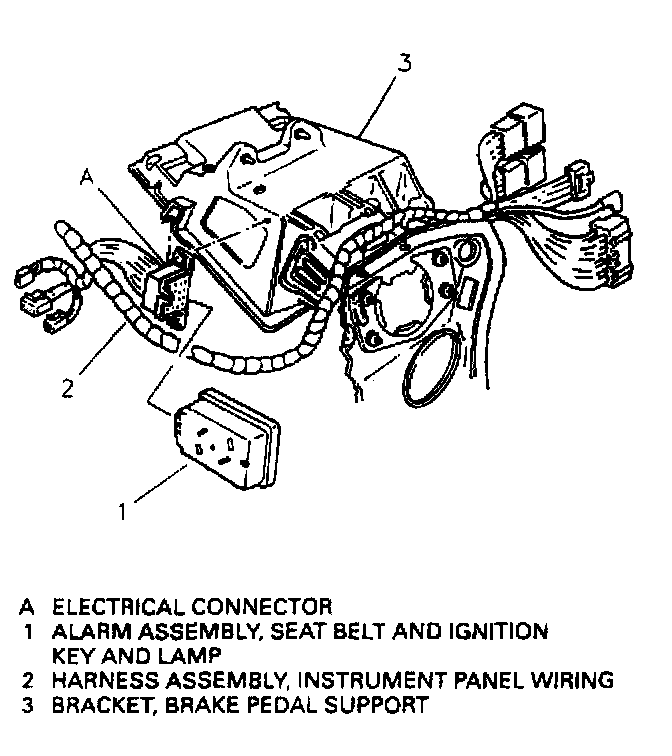

REMOVE OR DISCONNECT
1. Left instrument panel insulator.
2. Chime module from instrument panel wiring harness.

INSTALL OR CONNECT
1. Chime module to instrument panel wiring harness.
2. Left instrument panel insulator.
