Mode Control Cable

Removal Procedure

Important: Note the routing position of the cable in order to ensure easy installation.

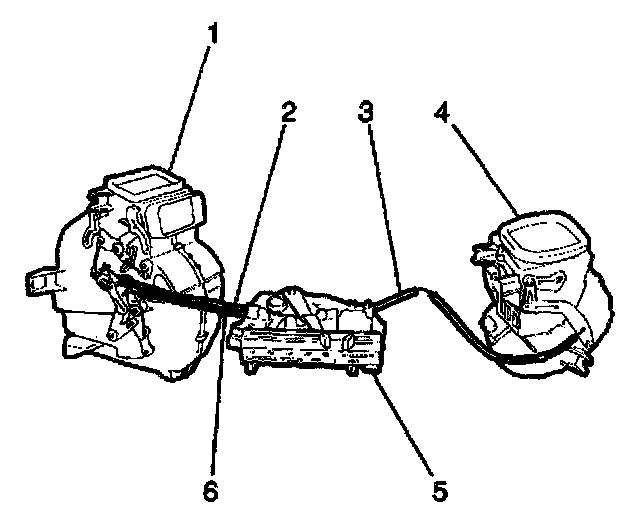

1. Disconnect the mode control cable (2) at the heater case (1).
2. Remove the heater control unit (5).
3. Disconnect the mode control cable at the heater control unit.
4. Remove the mode control cable from the instrument panel (IP).

Installation Procedure

1. Position the mode control cable in the vehicle. Route the cable as previously noted.
2. Connect the mode control cable (2) to the heater control unit (5).
3. Install the heater control unit to the IP.
4. Connect the mode control cable to the heater case (1).
5. Adjust the mode control cable.
