Table 2 Scan Tool Does Not Communicate

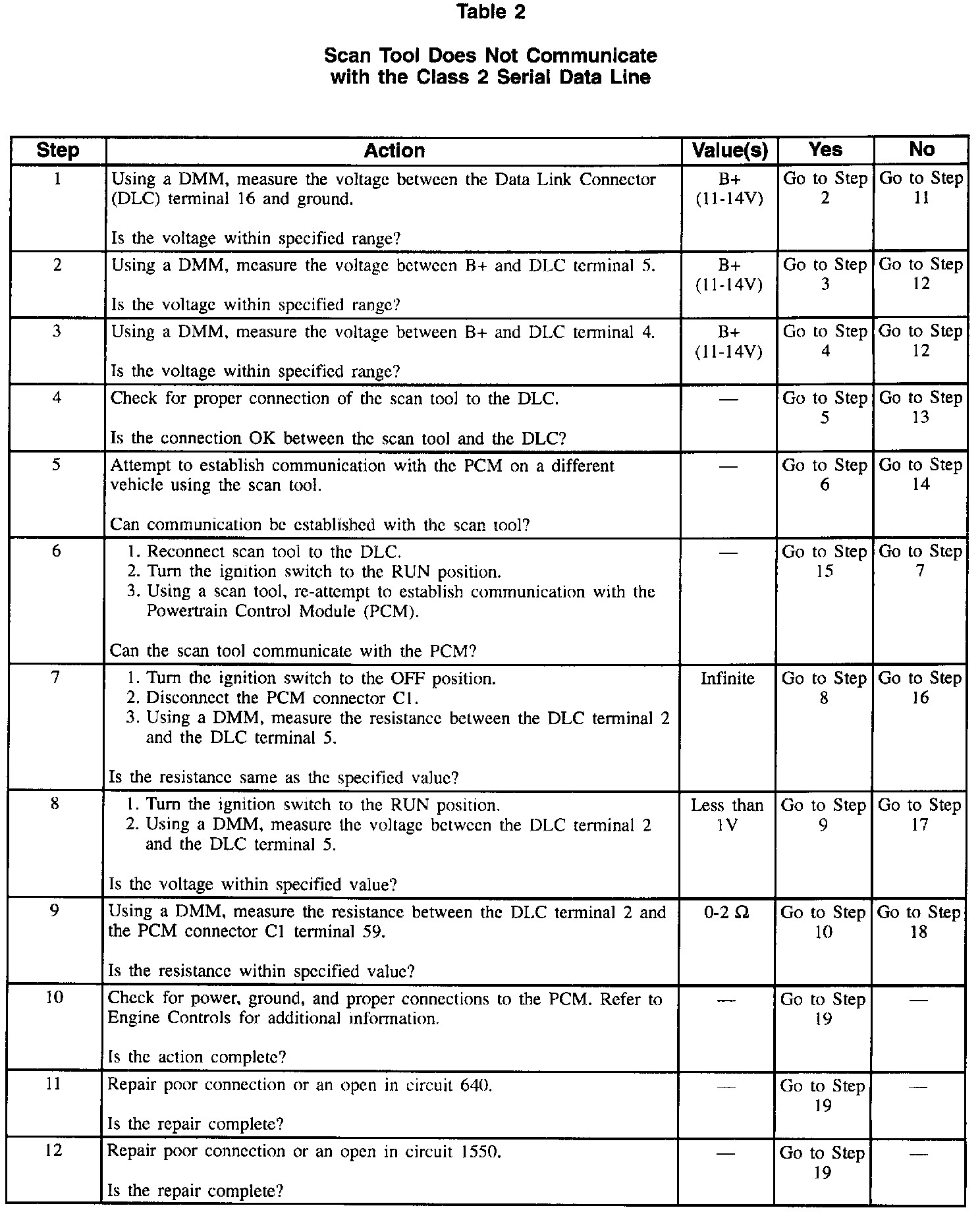

Table 2 Scan Tool Doesn't Communicate W/The Class 2 Serial Data Line (Part 1 Of 2):

Table 2 Scan Tool Doesn't Communicate W/The Class 2 Serial Data Line (Part 2 Of 2):
