Wiper Motor
>>
Front Wiper Motor
Front Wiper Motor

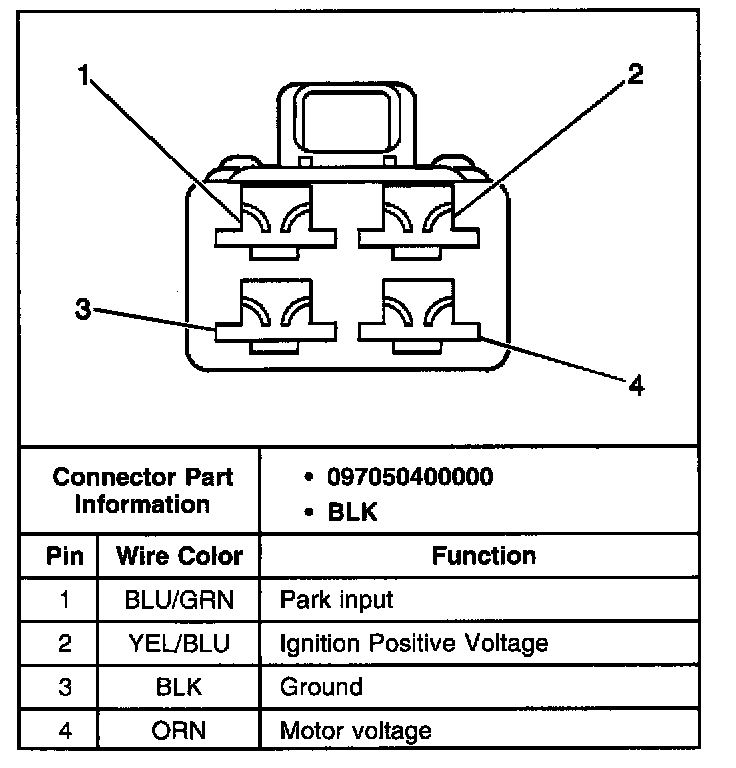

Cigar Lighter, Front Wiper Motor, Rear Wiper Motor(4-Door), C205 (4 Cavities) (4-Door), C207 (4 Cavities) (4-Door) C409 (4 Cavities) (4-Door):
Rear Wiper Motor:
