Tracker 2WD L4-1.6L VIN 6
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cruise Control
>>
Combination Switch
Combination Switch

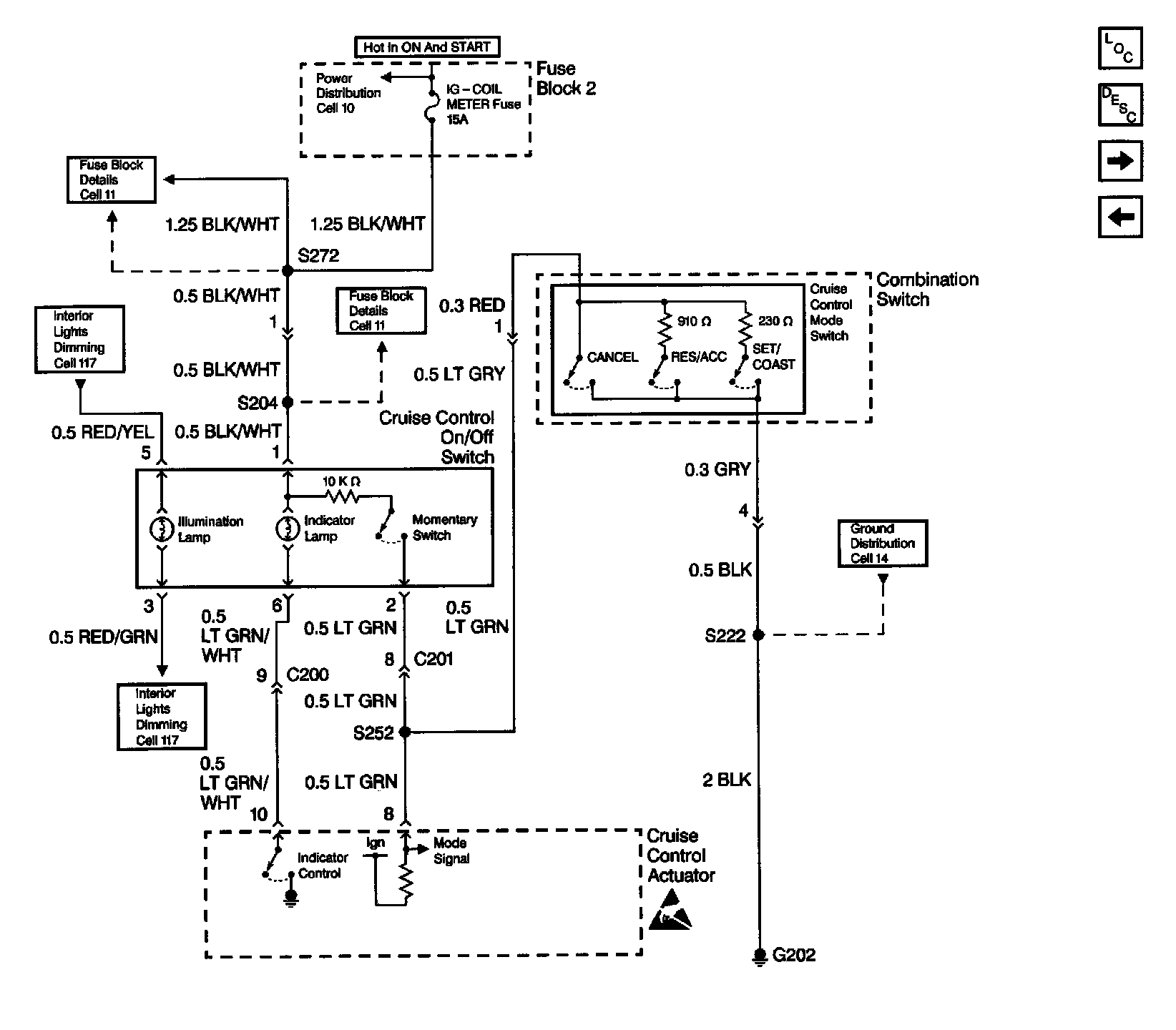

Cruise Control Schematics: Combination Switch:
