Heater Core: Service and Repair

Remove or Disconnect

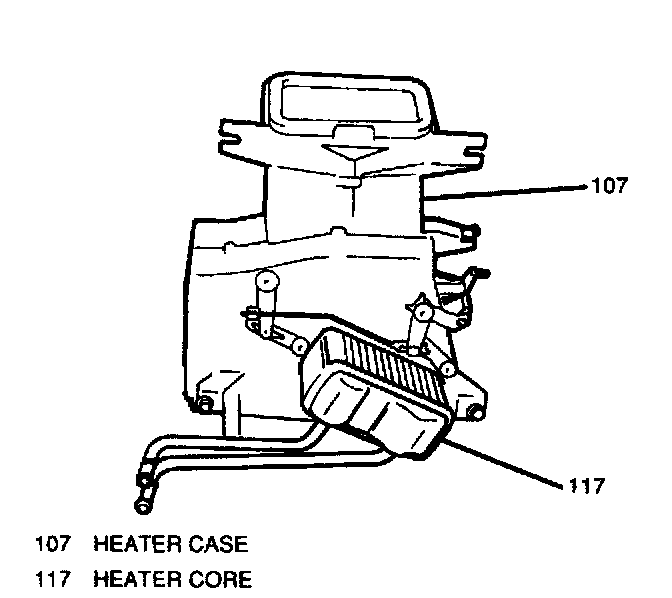

1. Heater case.
2. One screw and heater core pipes bracket.
3. Heater core from heater case.

Install or Connect

1. Heater core to heater case.
2. Heater core pipes bracket; secure with one screw.
3. Heater case to vehicle.
