Engine Mechanical Specifications

^ TOOLS REQUIRED
- J 8001 Dial Indicator Set
- J 26900-13 Magnetic Base

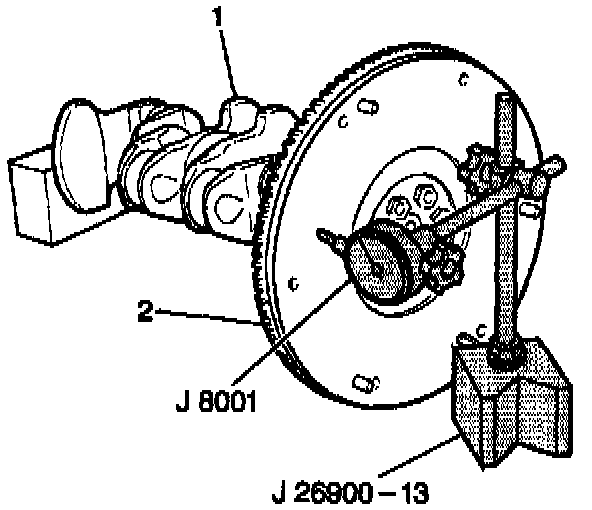

^ Use a J 8001 with a J 26900-13 in order to measure the flywheel (2) for face runout. Replace the flywheel if the runout exceeds 0.2 mm (0.0078 in).
