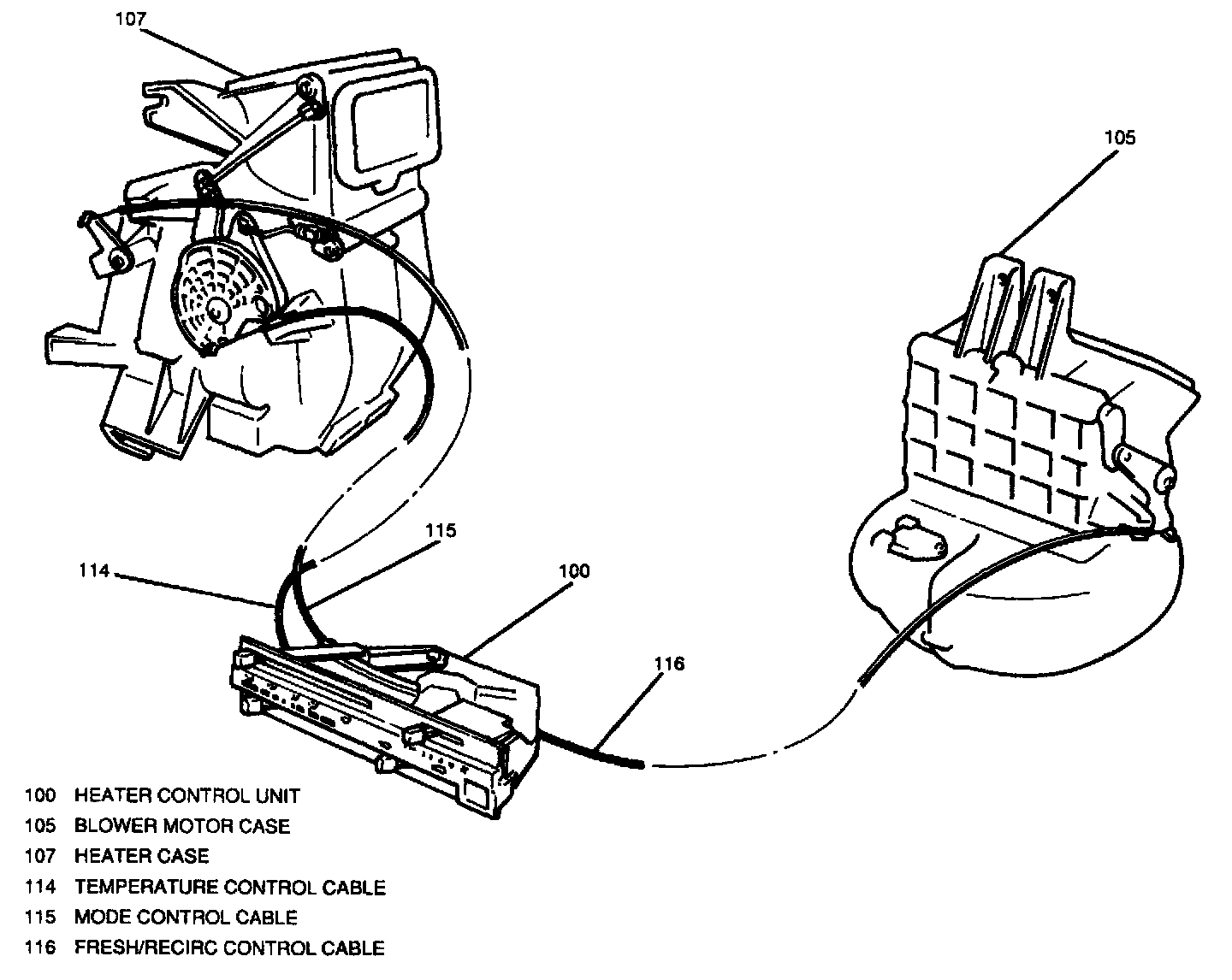

Fresh/Recirc Control Cable

Remove or Disconnect

1. Fresh/recirc control cable at the blower case.
2. Heater control unit.

Important
^ Note routing position of cable to make installation easier.

3. Fresh/recirc control cable at heater control unit.
4. Fresh/recirc control cable from I/P.

Install or Connect

1. Fresh/recirc control cable to heater control unit.
2. Heater control unit to I/P.
3. Position fresh/recirc control cable in vehicle; route cable as previously noted.

Adjust
^ Fresh/recirc control cable.
