Venture V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Locks
>>
Power Door Lock Control Module
>>
C2
C2

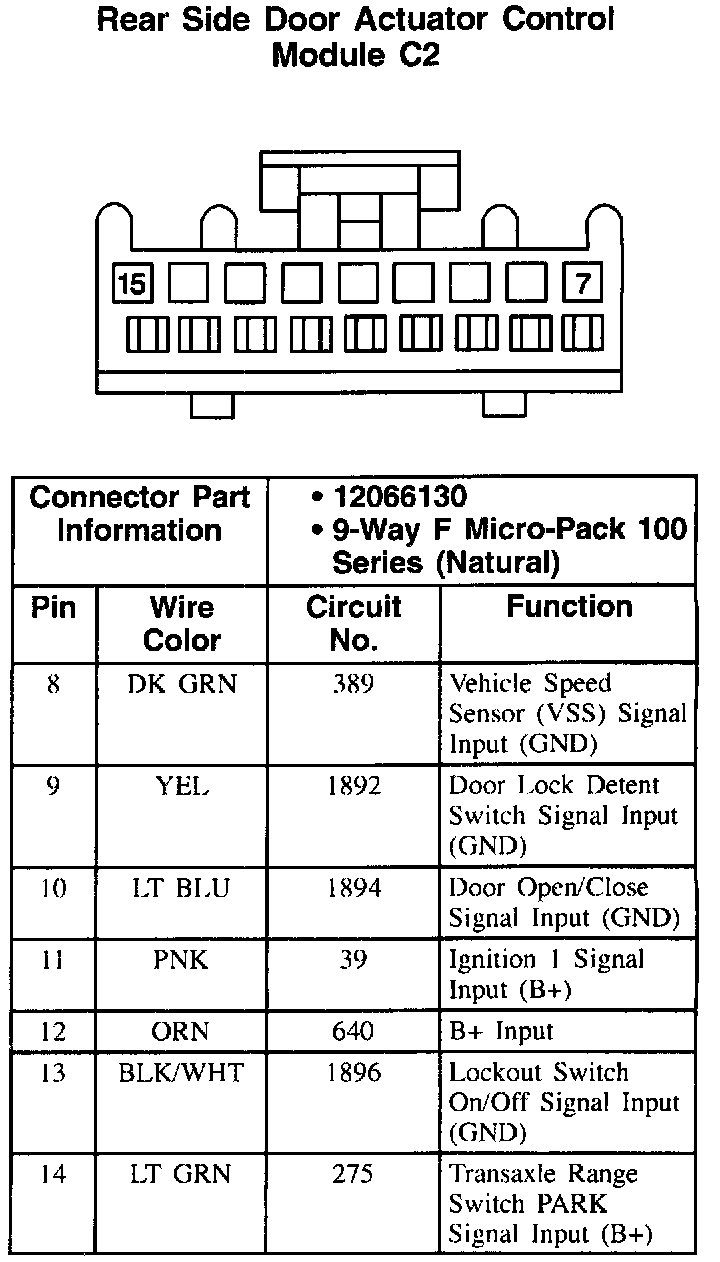

Rear Side Door Actuator Control Module C2:
