Primary A/C System

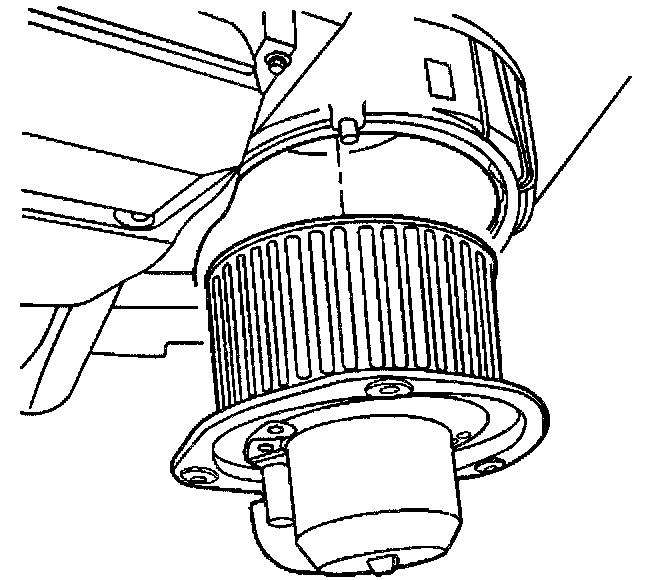

Removal Procedure

1. Remove the right side instrument panel insulator.





2. Disconnect the blower motor cooling hose.
3. Disconnect the blower motor electrical connectors.
4. Remove the blower motor mounting screws.





5. Remove the blower motor.

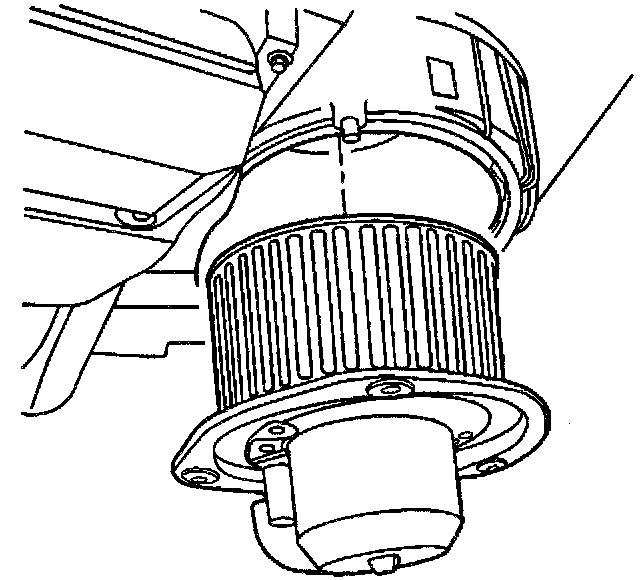

Installation Procedure





1. Install the blower motor.
2. Install the mounting screws.

Tighten
Tighten the screws to 20 N.m (15 lb ft).

3. Connect the electrical connectors.
4. Connect the blower motor cooling hose.
5. Install the right side instrument panel insulator.
