Home >> Chevrolet >> 1998 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Diagrams >> Heater-A/C Control >> Primary Heating System >> C1

C1

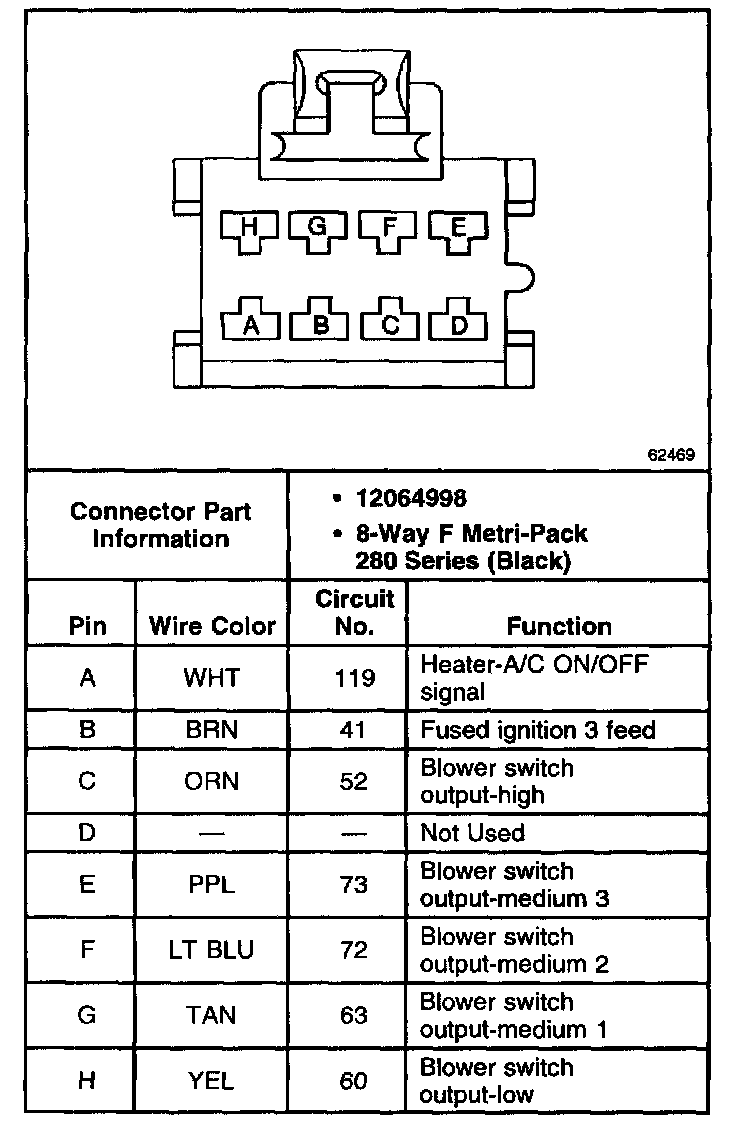

C60:
