Transfer Case

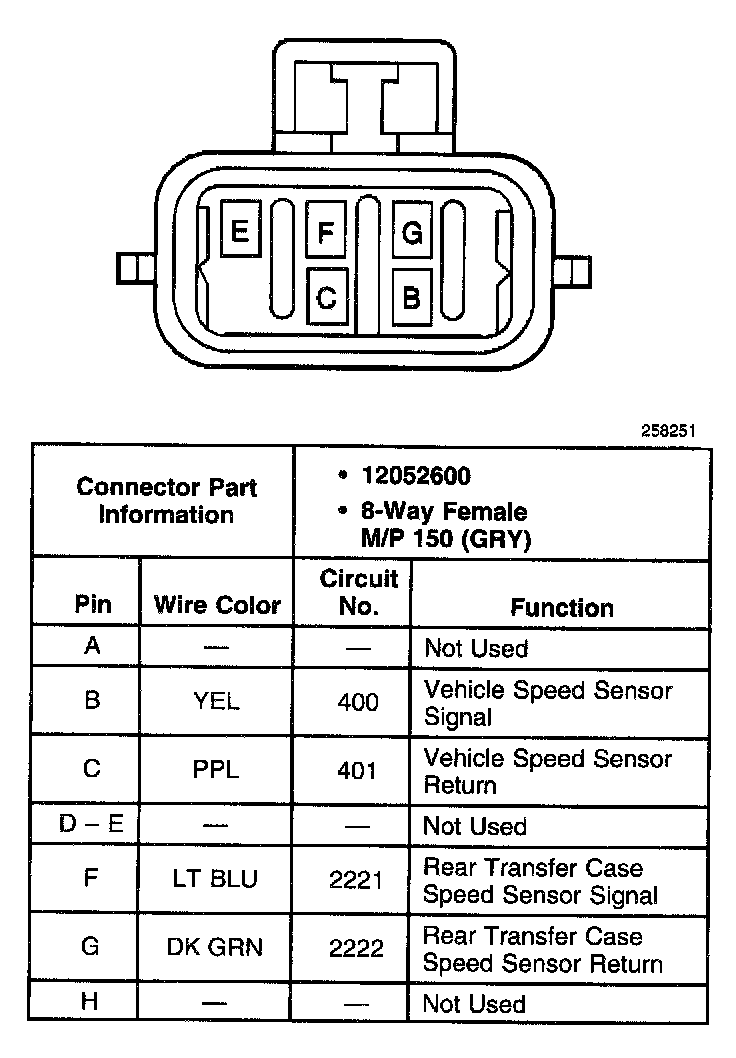

TRANSFER CASE SHIFT CONTROL

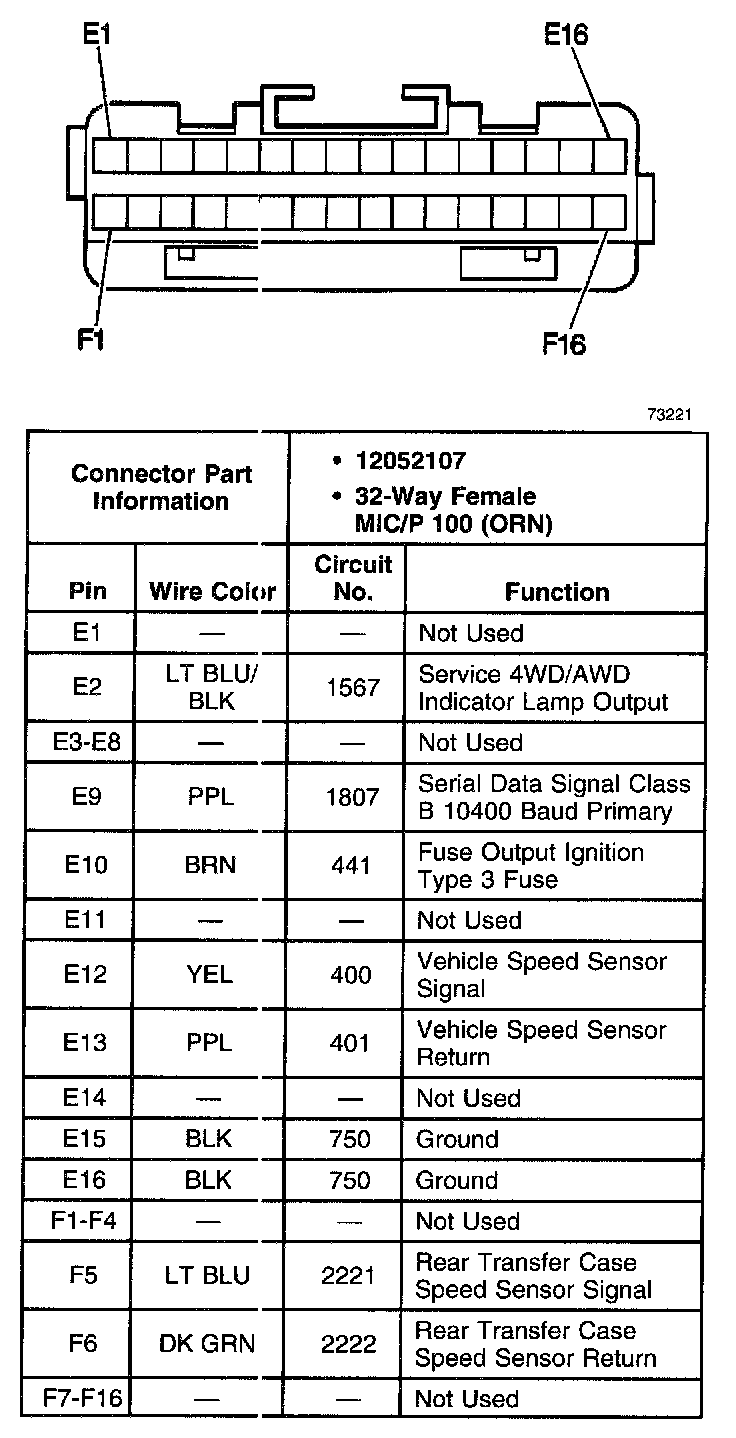

TRANSFER CASE SHIFT CONTROL MODULE (CL)

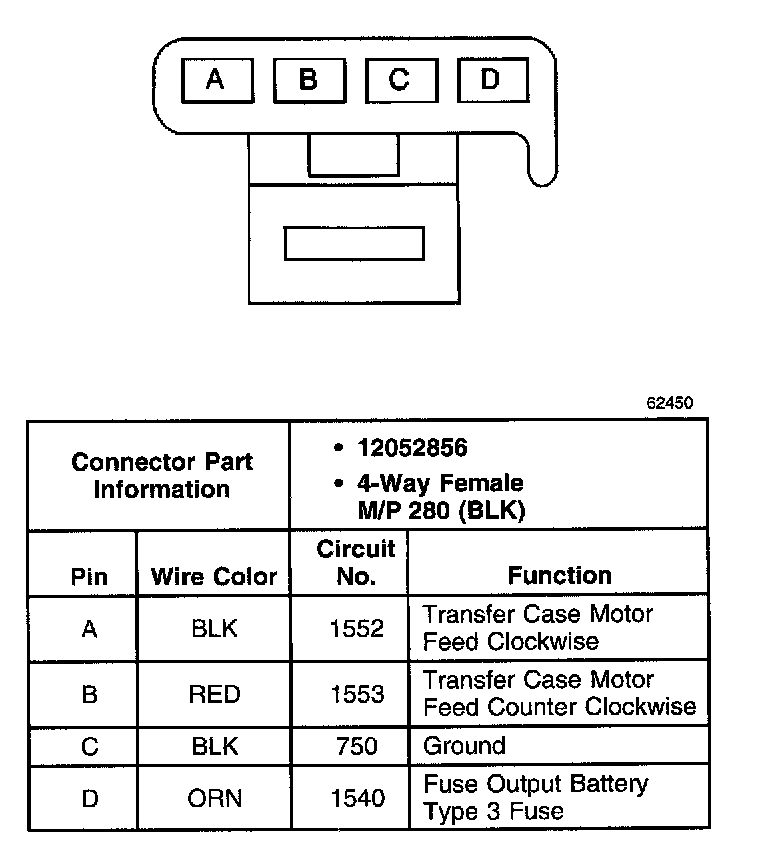

TRANSFER CASE SHIFT CONTROL MODULE (C2)
