Transfer Case Control Component Views
Transfer Case Control Component Views
Locations View:

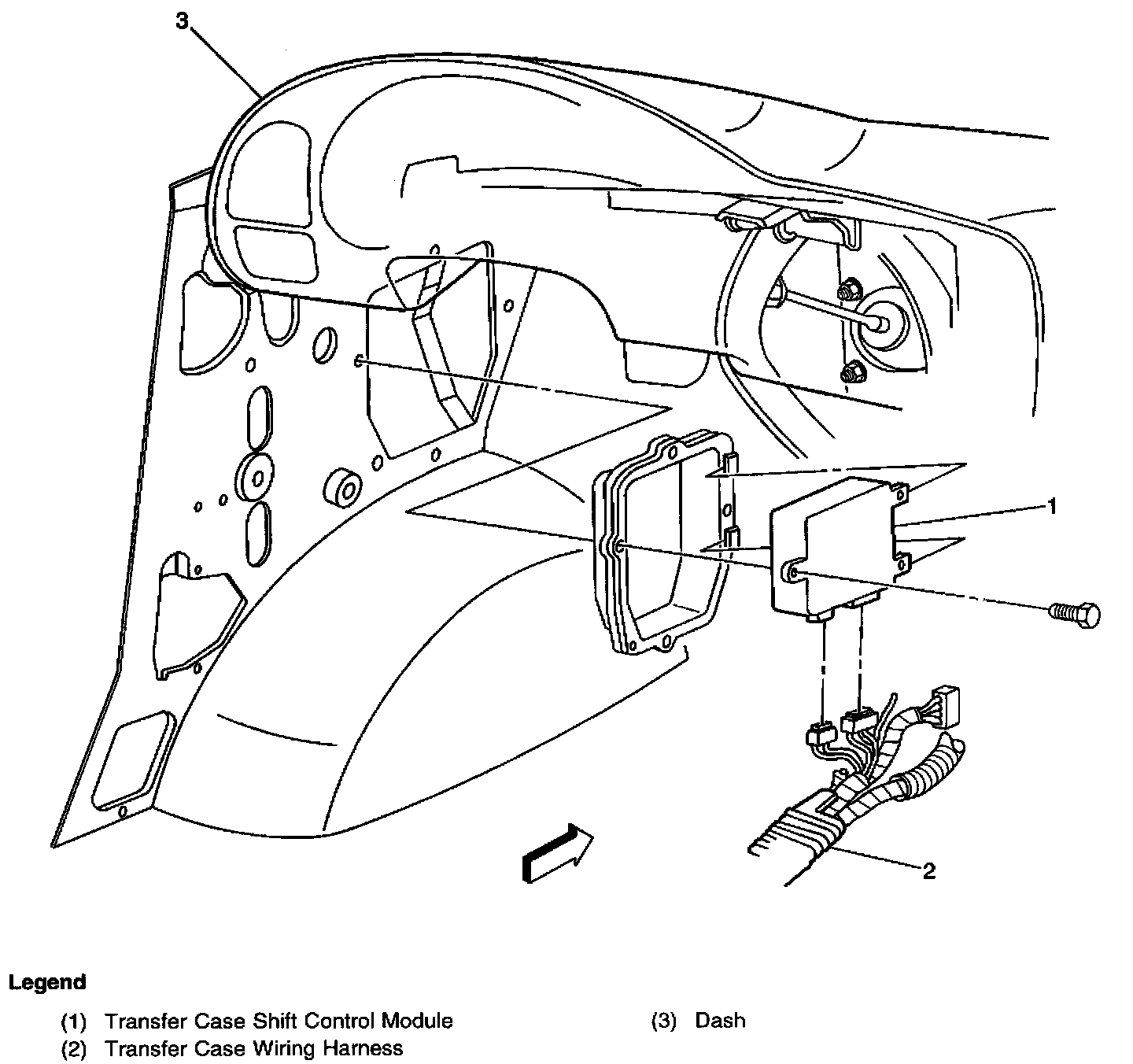

Transfer Case Control Module Locator View
Locations View:

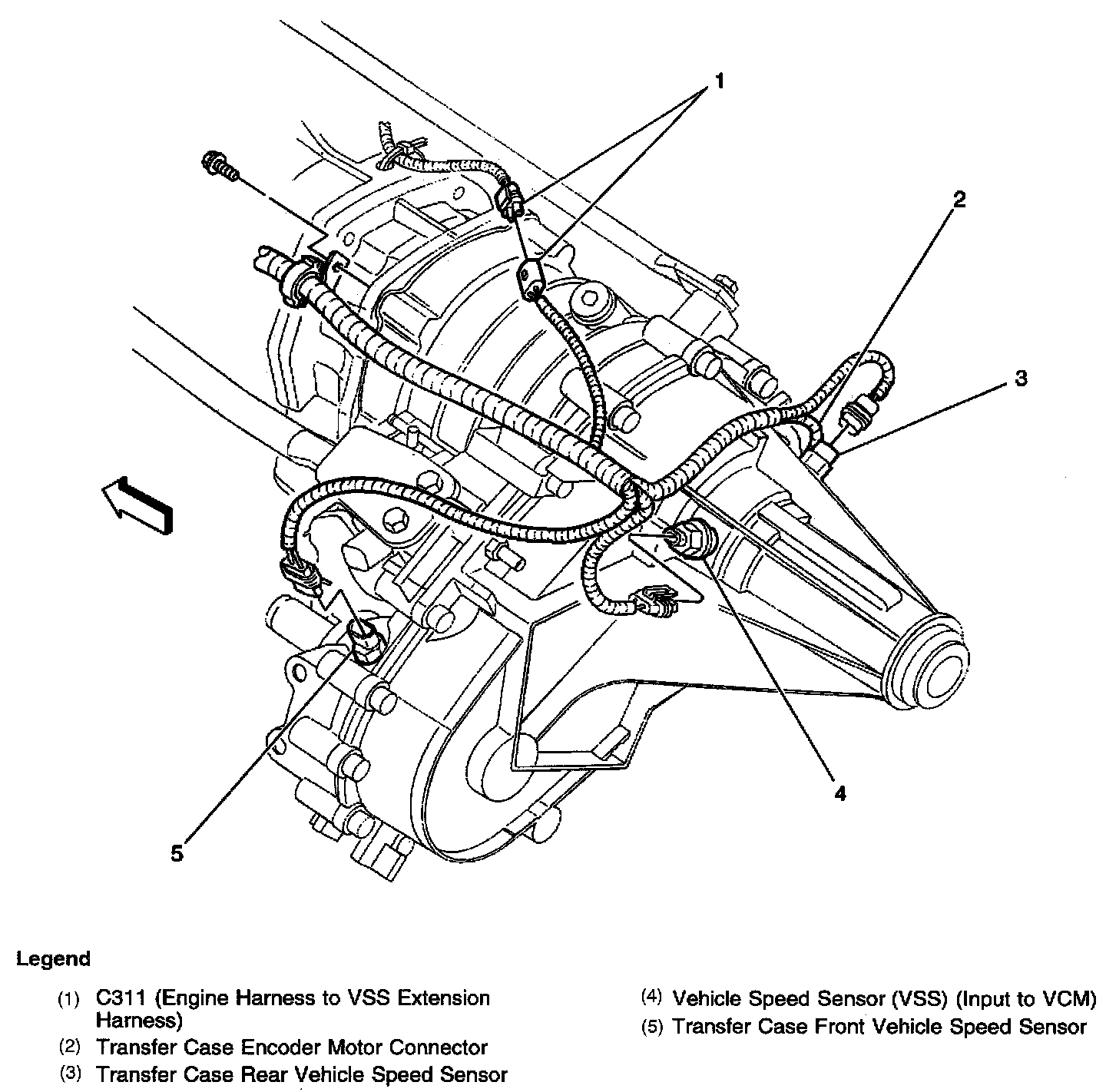

A4WD Transfer Case Locator View
