Power Steering Line/Hose: Service and Repair

REMOVAL PROCEDURE
1. Place drain pan(s) under vehicle under steering gear and pump.
2. Raise and suitably support vehicle. Refer to Vehicle Lifting.

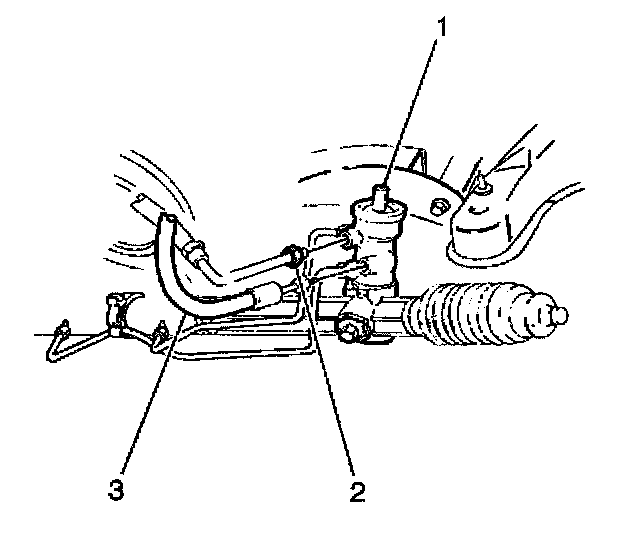

3. Remove power steering gear inlet (3) and outlet (2) hoses from steering gear (1).
4. Lower vehicle.
5. Remove the serpentine belt.
6. Remove the power steering pump pulley. Refer to Power Steering Pulley Replacement for L36 V6 or Power Steering Pulley Replacement for LS1 V8.

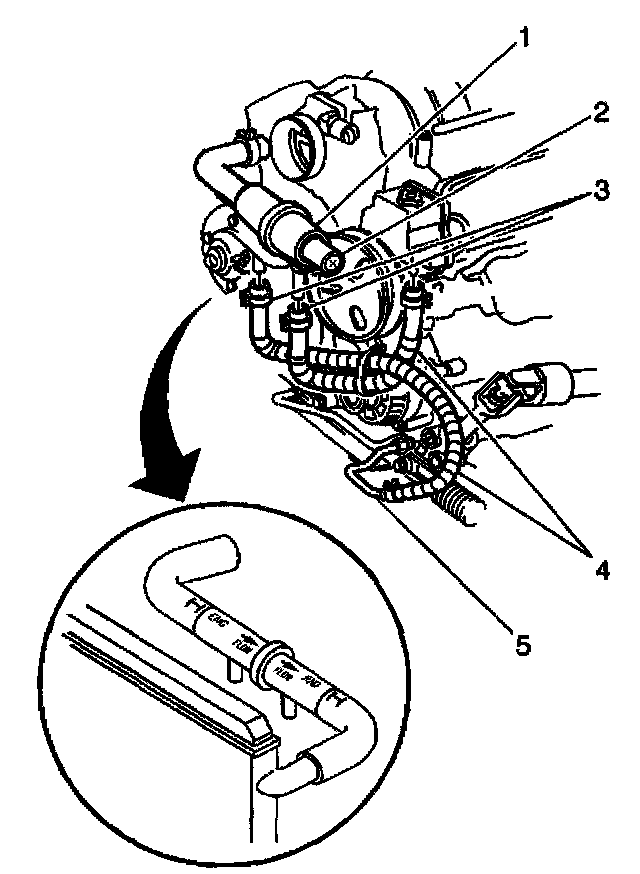

7. Remove inlet hose fitting (3) from pump (1) (L36 shown, LS1 similar).





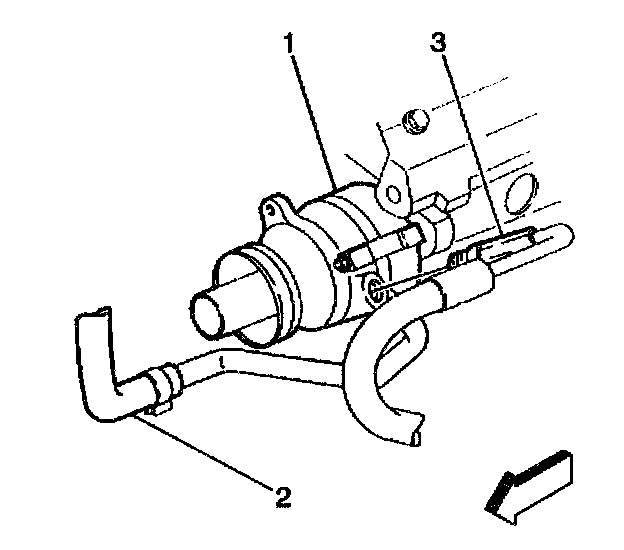

8. Remove outlet hose from reservoir (LS1 with cooler shown, remote-mount reservoir on L36).


IMPORTANT: If vehicle is equipped with a power steering cooler (LS1 only), outlet hose and cooler hose (if replacing) must be removed from the power steering cooler as the cooler is installed in the outlet hose (return back to reservoir).


INSTALLATION PROCEDURE





1. Install outlet hose to reservoir (LS1 with cooler shown, remote-mount reservoir on L36). (Pump mounted on LS1, body mounted on L36)

IMPORTANT: Inlet and outlet hoses must be oriented so as adequate clearance is maintained between both hoses and surrounding components to prevent chafing. Use minimum clearance of 12 mm (.47 inch). The outlet hose must not be twisted during installation. Do not bend or distorx inlet and outlet hoses to make installation easier. Failure to follow these procedures could result in component damage.





2. Install inlet hose fitting (3) to pump (1) (L36 shown, LS1 similar).
3. Install the power steering pump pulley. Refer to Power Steering Pulley Replacement for L36 V6 or Power Steering Pulley Replacement for LS1 V8.
4. Install the serpentine belt.
5. Raise and suitably support vehicle. Refer to Vehicle Lifting.





6. Install inlet and outlet hoses (2 and 3) to steering gear (1).
- Tighten Inlet hose (3) to 28 Nm (21 ft. lbs.).
- Tighten Outlet hose (2) to 28 Nm (21 ft. lbs.).

7. Lower vehicle.
8. Remove drain pan.
9. Refill and bleed power steering system. Refer to Bleeding Power Steering System in Steering/Service and Repair.
