Catalytic Converter Replacement
Removal Procedure1. Raise and suitably support the vehicle. Refer to Vehicle Lifting.

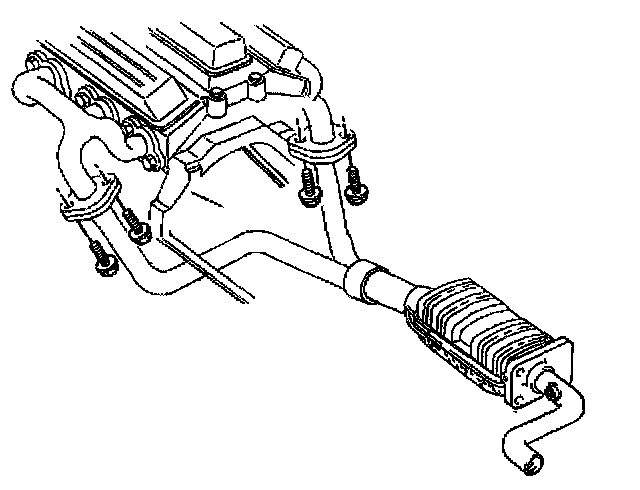

2. Remove the exhaust manifold pipe bolts at the exhaust manifolds.

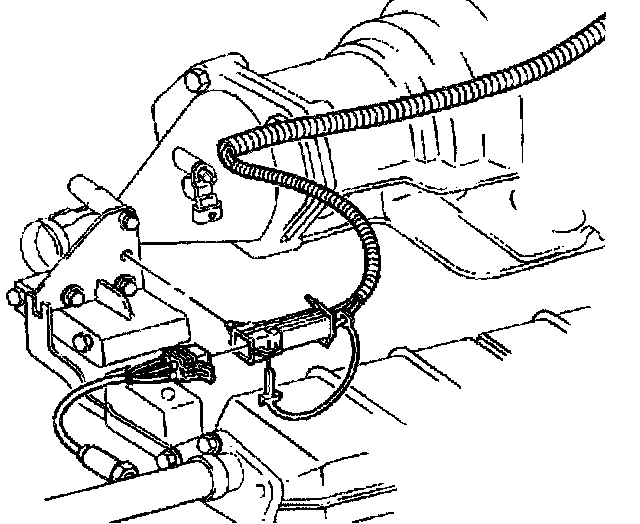

3. Disconnect the electrical connector from the heated oxygen sensor.

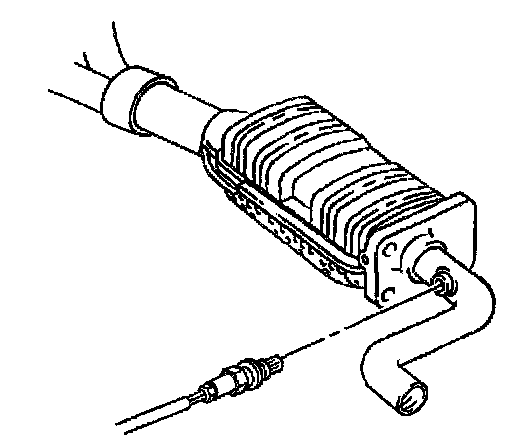

4. Remove the heated oxygen sensor from the 3 way catalytic converter.

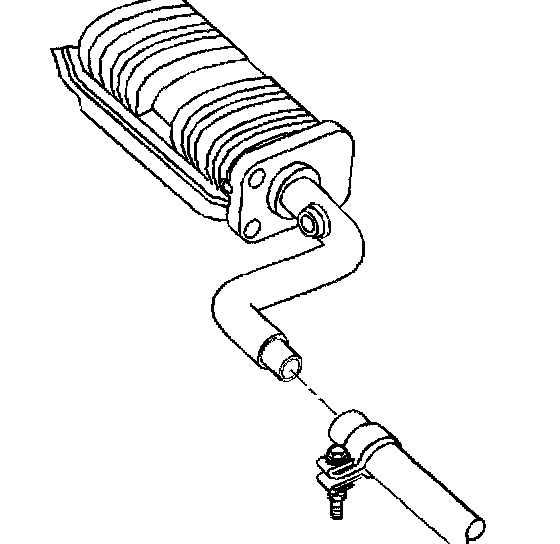

5. Loosen the muffler clamp bolt at the 3 way catalytic converter.
6. Remove the 3 way catalytic converter from the exhaust muffler.

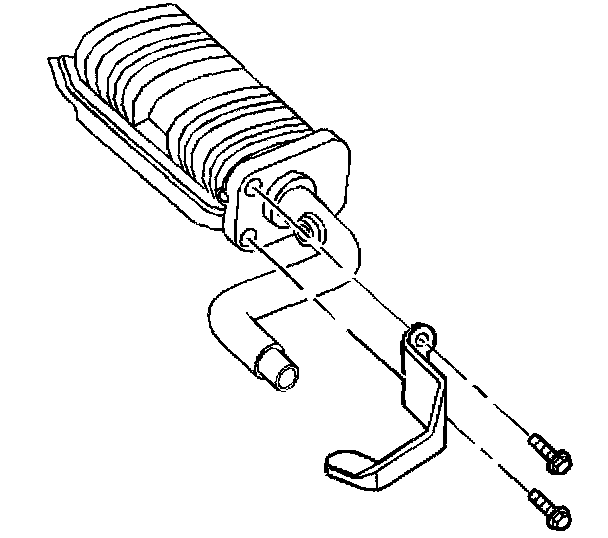

7. Remove the catalytic converter hanger bolts.
8. Remove the catalytic converter hanger from the 3 way catalytic converter.
Installation Procedure
1. Install the catalytic converter hanger to the 3 way catalytic converter.
Notice: Refer to Fastener Notice in Service Precautions.
2. Install the catalytic converter hanger bolts.
^ Tighten the catalytic converter hanger bolts to 41 Nm (30 ft. lbs.).
3. Install the 3 way catalytic converter to the exhaust muffler.
4. Tighten the exhaust muffler clamp bolt at the 3 way catalytic converter.
^ Tighten the exhaust muffler clamp bolt to 50 Nm (37 ft. lbs.).

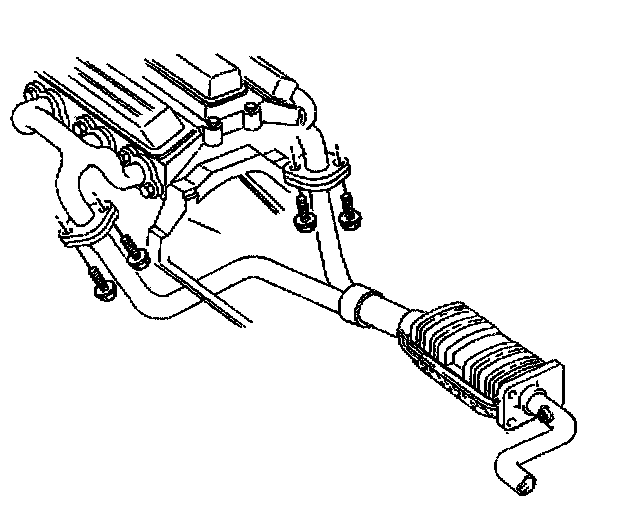

5. Install the exhaust manifold pipe bolts at the exhaust manifolds.
5.1. Loosely install the exhaust manifold pipe bolts to the manifolds.
5.2. Tighten the bolts to specifications alternating back and forth from the right to the left manifold flanges.
^ Tighten the exhaust manifold pipe bolts to 35 Nm (26 ft. lbs.).
6. Install the heated oxygen sensor to the 3 way catalytic converter.
^ Tighten the heated oxygen sensor to 42 Nm (31 ft. lbs.).
7. Connect the heated oxygen sensor electrical connector.
8. Lower the vehicle.
