Speaker Replacement - Rear

REMOVAL PROCEDURE




1. Remove the rear compartment closeout panel (1), if equipped, from the rear trim finish panel (2).




2. Remove the quarter inner rear trim finishing panel (1) perform the following:
^ Loosen the retainers.
^ Pull the rear trim finish panel (1) up.
^ Disconnect the wiring harness connectors (3 and 4) from the speaker connectors (2 and 5).
3. Remove the speaker grille (6).




4. Reposition the radio quarter speaker insulator, if necessary.

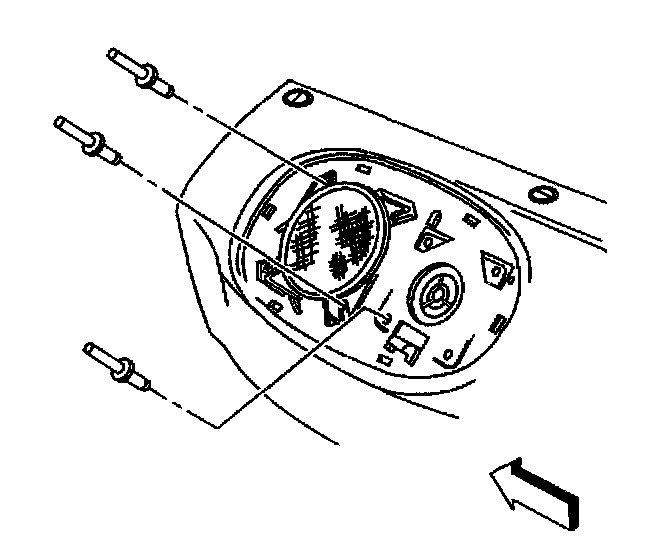

5. Drill out the 2 speaker rivets, if replacing the mid range speaker.
6. Drill out the single rivet, if replacing the tweeter.




7. Remove the electrical connectors from the trim panel.
8. If replacing the mid-range speaker (1) perform the following:
^ Rotate the speaker (1) counterclockwise.
^ Unseat the speaker (1) from the panel.
9. If replacing the tweeter (2) perform the following:
^ Push the retainer tab down.
^ Unsnap the tweeter (2) from the trim panel.

INSTALLATION PROCEDURE



1. If installing the tweeter (2) perform the following:
^ Place the top of the tweeter (2) flange under the tab on the panel.
^ Push the bottom of the tweeter (2) against the panel until secured by retainer tab.
2. If installing the mid-range speaker (1) perform the following:
^ Align the speaker (1) to the trim panel.
^ Twist the speaker (1) clockwise until seated in panel.




3. If replacing the tweeter install the rivet.
4. It replacing the mid range speaker install 2 rivets.




5. Position the radio quarter speaker insulator, if required.




6. Install the speaker grille (6).
7. Install the quarter inner rear trim finishing panel (1) perform the following:
^ Connect the wiring harness connectors (3 and 4) to the speaker connectors (2 and 5).
^ Place the rear trim finish panel (1) into place.
^ Tighten the retainers.




8. install the rear compartment closeout panel (1), if equipped, to the rear trim finish panel (2).
