Generator Splash Shield Replacement

REMOVAL PROCEDURE

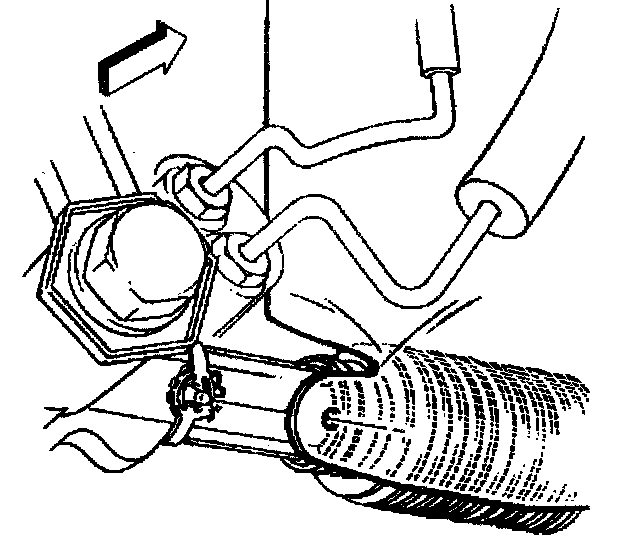

1. Remove the generator splash shield from the tie strap on the steering rack.

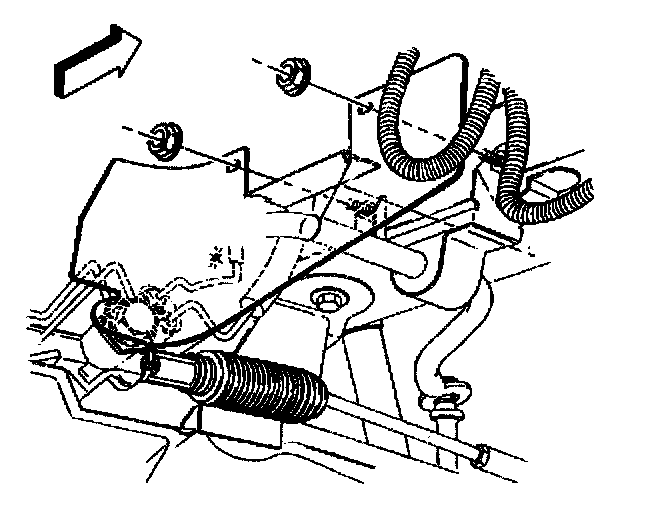

2. Remove the generator splash shield nuts.
3. Remove the generator splash shield.

INSTALLATION PROCEDURE

1. Install the generator splash shield.
2. Install the generator splash shield nuts.

3. Install the generator splash shield to the tie strap on the steering rack.
