Function Test - Heating & Ventilation System

Function Test:





Inspect all of the A/C outlets for the following conditions:
^ Barrel rotation
^ Vane operation

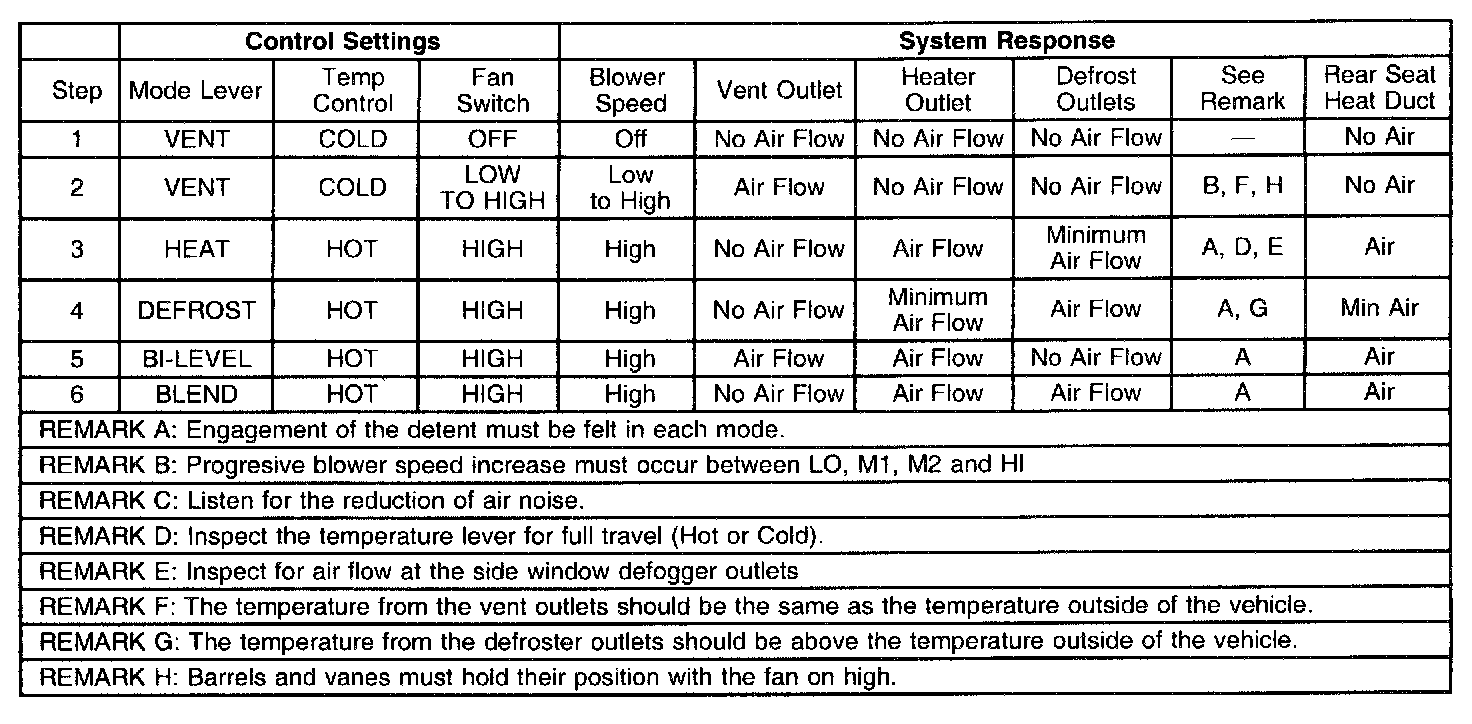

Perform each step of the functional test shown on the illustration as one total operation of the roll test with the following conditions in place:
^ The window is up.
^ The door is closed.

Note any discrepancies from the remarks listed below.
