Fuel Pump Pickup Filter: Service and Repair

Fuel Pump Strainer Replacement

REMOVAL PROCEDURE




1. Relieve fuel system pressure.
2. Drain the fuel tank. Refer to Fuel Tank Draining Procedure.
3. Remove the fuel tank.

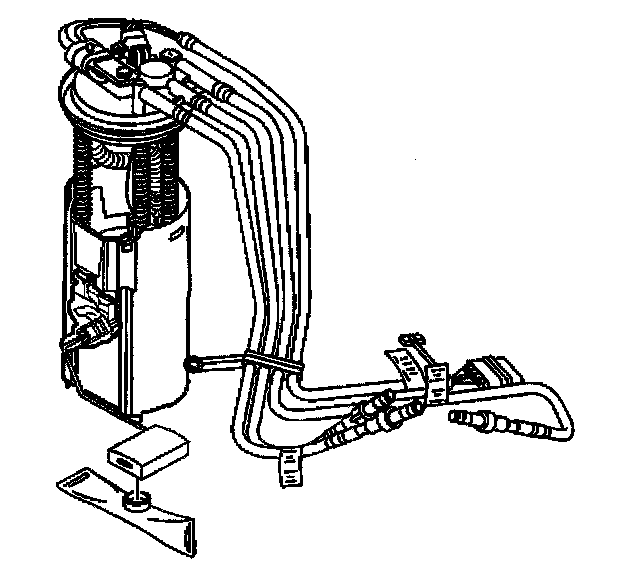

4. Remove the fuel sender assembly.
5. Note the strainer position for future reference.




6. Support the reservoir with one hand.

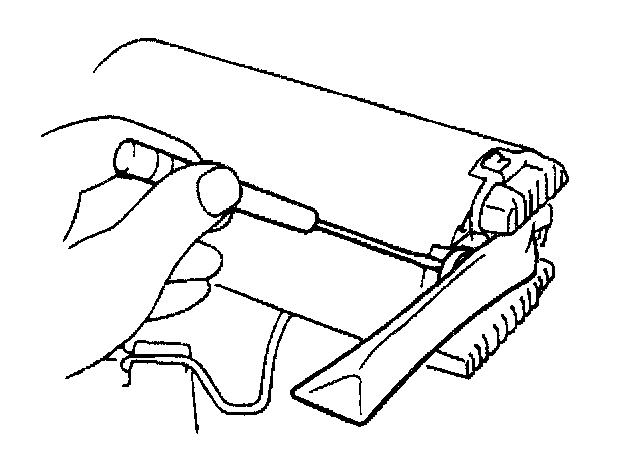

7. Use a screwdriver to pry the strainer ferrule off the reservoir.
8. Discard the strainer.

INSTALLATION PROCEDURE




1. Support the reservoir with one hand and grasp the strainer with the other hand twisting the strainer into position.
2. Install the fuel sender assembly.
3. Install the fuel tank.
4. Refill the fuel tank.
5. Inspect for fuel leaks:
5.1. Turn the ignition switch to the ON position for 2 Seconds.
5.2. Turn the ignition switch to the OFF position for 10 Seconds.
5.3. Turn the ignition switch to the ON position.
5.4. Check for fuel leaks.
