Automatic Transaxle - 4T40-E/4T45-E

Removal Procedure

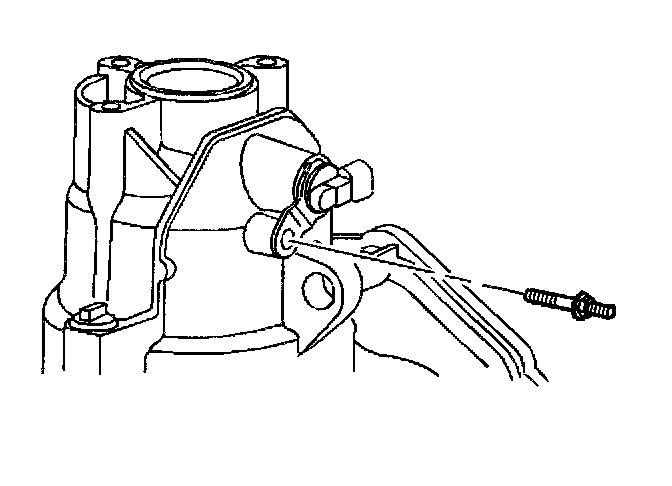

1. Raise the vehicle. Support the vehicle. Refer to Vehicle Lifting.

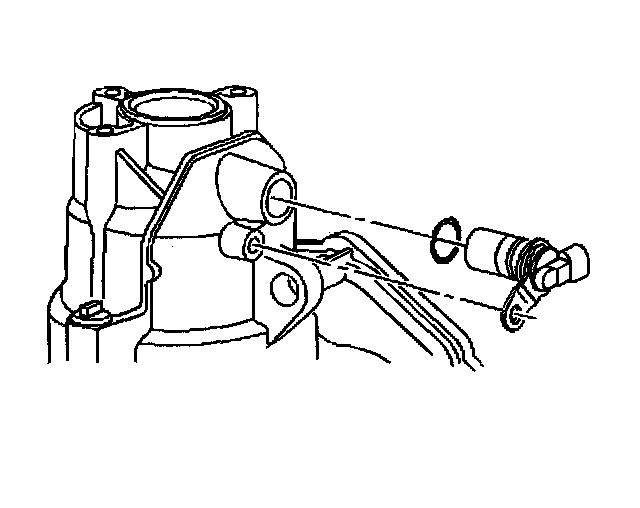

2. Disconnect the electrical connector.





3. Remove the vehicle speed sensor bolt.





4. Remove the vehicle speed sensor from the case extension.





5. Remove the O-ring from the vehicle speed sensor.

Installation Procedure





1. Install the O-ring onto the vehicle speed sensor.





2. Install the vehicle speed sensor into the case extension.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the vehicle speed sensor bolt.
^ Tighten the bolt to 11 Nm (97 inch lbs.).





4. Connect the electrical connector.
5. Lower the vehicle.
