Battery Cable: Service and Repair

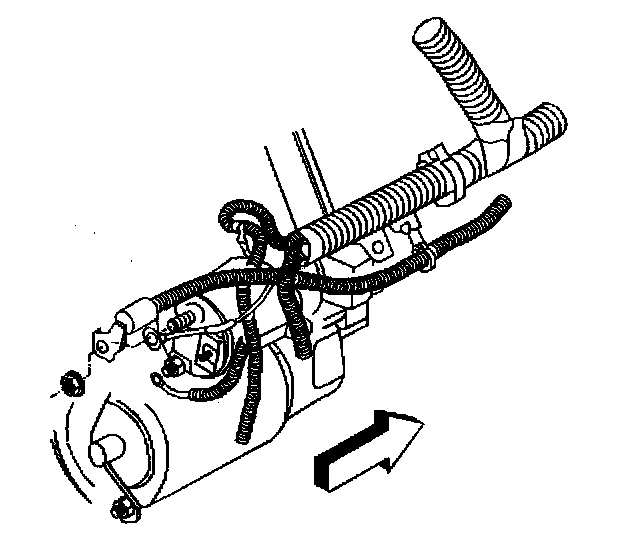

When replacing battery cables for the 2.2L (LN2), always be sure that the replacement cable is the same type and length as the original cable. Some positive battery cables have additional teed wires attached to them, and some negative battery cables have additional ground leads attached. Always be certain to route replacement cables the same as the original cables.
