Keyless Entry Receiver: Service and Repair

REMOVAL PROCEDURE

IMPORTANT: The Remote Function Actuation (RFA) system uses the same receiver as the Tire Pressure Monitor (TPM) system. The service replacement receiver must be programmed to accept both the keyless entry transmitters and the TPM sensors.



1. Turn the ignition to OFF.

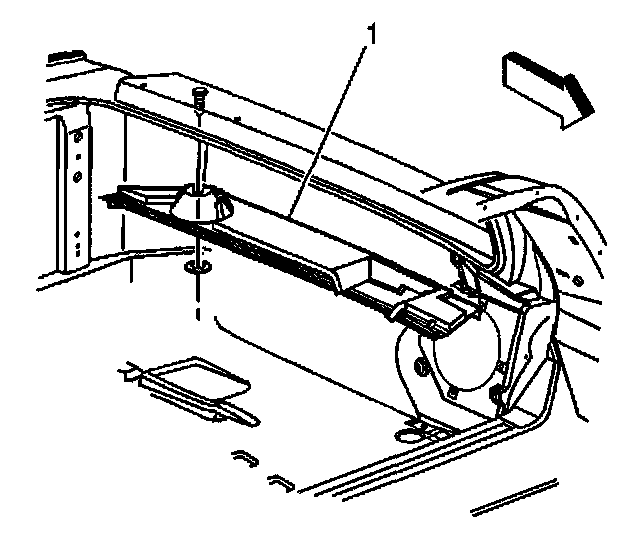

2. Remove the left compartment insulator (1).

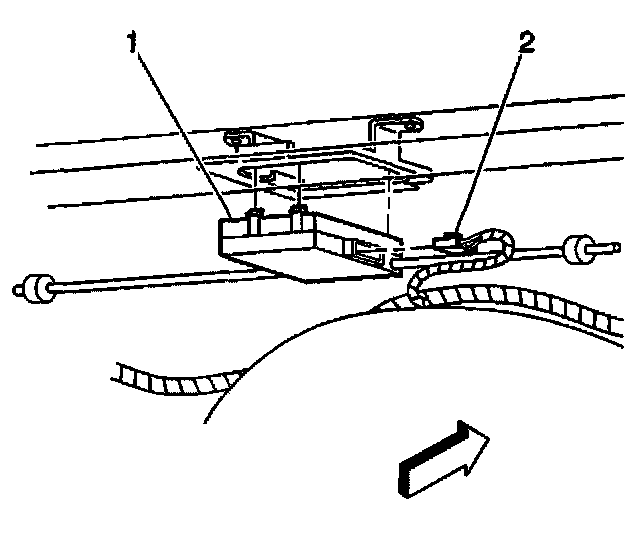

3. Gently pull on the retainer at the back side of the receiver (1).
4. Pull out the receiver (1) only enough to expose the connector (2).
5. Disconnect the receiver connector (2).

INSTALLATION PROCEDURE



1. Connect the receiver connector (2).
2. Line up the receiver (1) with the slots on the retainer.
3. Snap the receiver (1) into place on the retainer.




4. Install the left compartment insulator (1).
5. Program the keyless entry transmitters. Refer to Transmitter Programming/Synchronization. Keyless Entry Transmitter
6. Program the TPM sensors.
