Mirror Replacement
REMOVAL PROCEDURECAUTION: Disconnect the power window switch when working inside the drivers door. When operated, the Express Down feature allows the door window to drop very quickly, which could cause personal injury.
1. Lower the door window.
2. Remove the door trim panel.

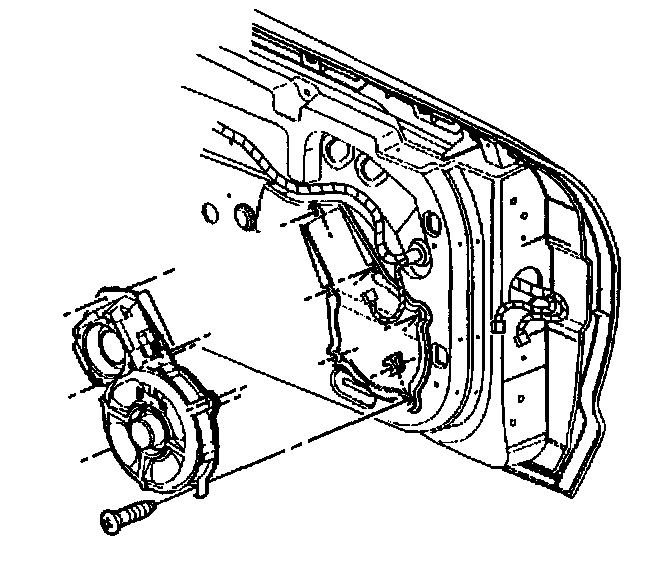

3. Remove the door radio speaker assembly.
^ Remove the screws mounting the speaker assembly.
^ Disconnect the electrical/audio connector.

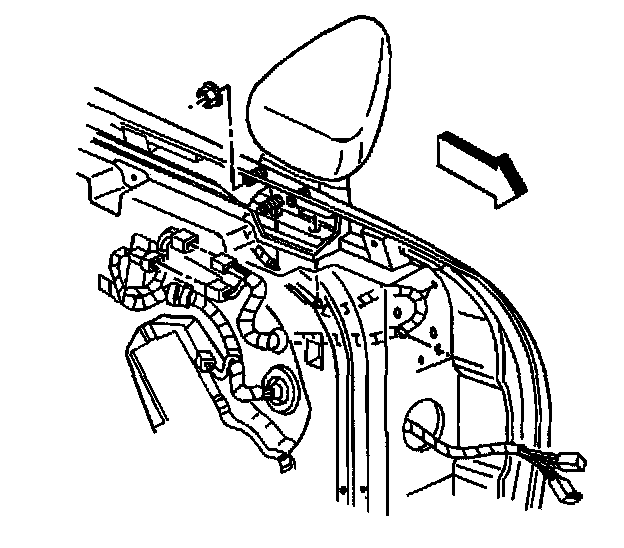

4. Remove the mirror nut access plugs.
5. Disconnect the electrical connector(s).
6. Disconnect the mirror harness from the retainers.
7. Remove the nuts from the mirror studs.
8. Remove the mirror with the harness and gasket.
INSTALLATION PROCEDURE
1. Position the mirror with the gasket and harness to the door.
NOTE: Refer to Fastener Notice in Cautions and Notices.
2. Install the nuts to the mirror.
Tighten
The mirror nuts to 10 N.m (89 lb in).
3. Route the harness and secure the harness with the harness retainers.
4. Connect the electrical connector(s).
5. Install the mirror nut access plugs.
6. Install the uppermost screw mounting the radio speaker assembly to the door.
7. Install the remaining screws in a criss-cross pattern.
Tighten
Tighten the door speaker assembly screws to 2.5 N.m (22 lb in).
8. Connect the electrical/audio connector.
9. Connect the speaker connectors.
10. Install the door trim panel.
