Cruise Release Switch Replacement

REMOVAL PROCEDURE

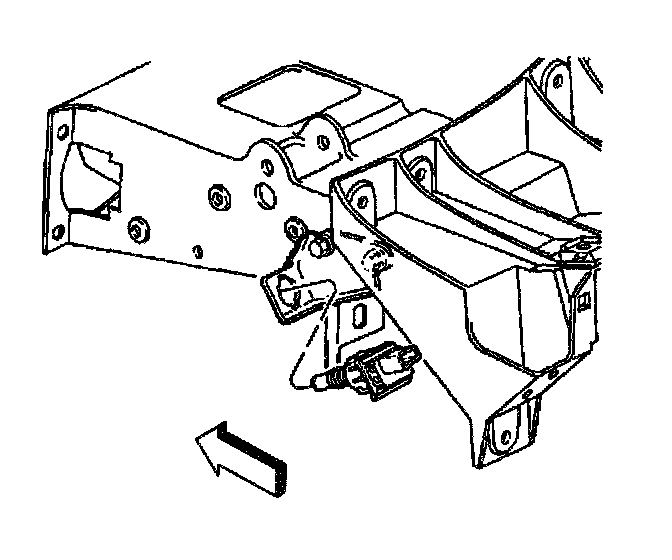

1. Remove the LH I/P lower insulator panel.

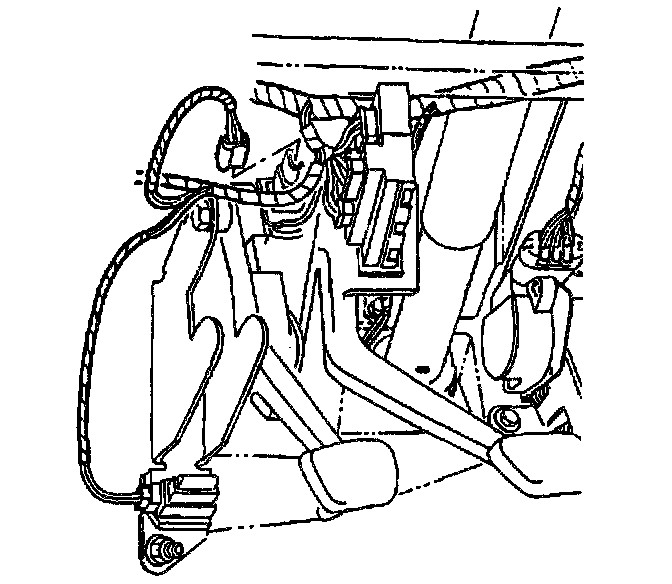

2. Disconnect the cruise control release switch electrical connector.




3. Remove the cruise control release switch from the cruise control release switch bracket.

INSTALLATION PROCEDURE



1. Install the cruise control release switch to the switch bracket.

Fully seat the switch to the bracket; audible clicks will be heard while pushing the switch.




2. Connect the cruise control release switch electrical connector.

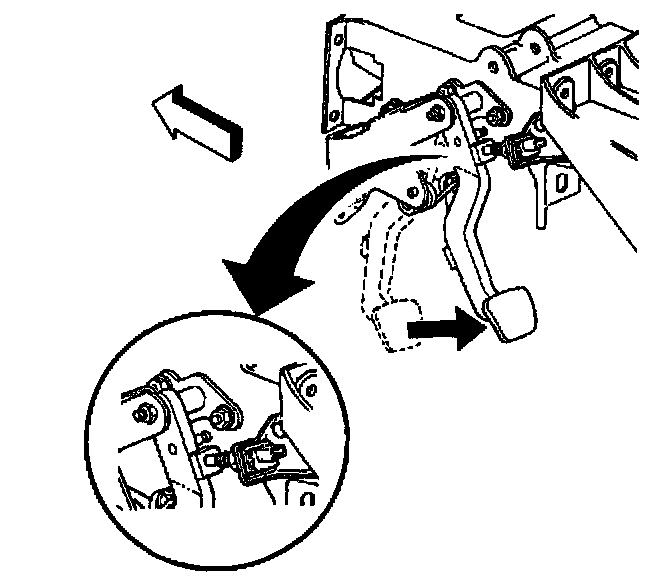

3. Adjust the cruise control release switch. Grasp the clutch pedal and pull fully rearward against the pedal stop; audible clicks may be heard as the switch moves into the adjusted position.
4. Install the LH I/P lower insulator panel.
