Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1999
>>
Corvette V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

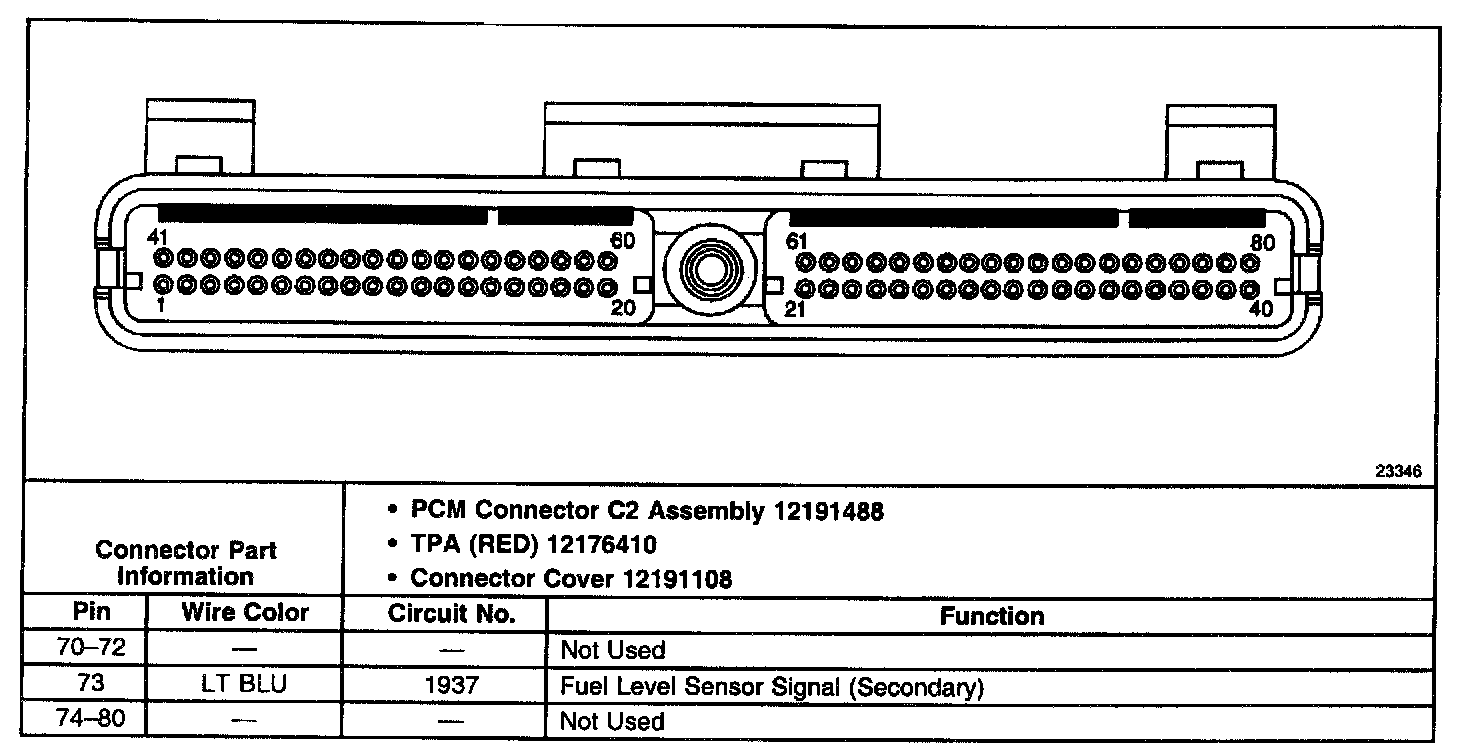

Engine Control Module
>>
C2
>>
Pin 70 - 80
Pin 70 - 80
